(06.01) - WIRE HARNESSES

Запчасти Case IH FARMALL 50 (06.01) - WIRE HARNESSES (06) - ELECTRICAL SYSTEMS

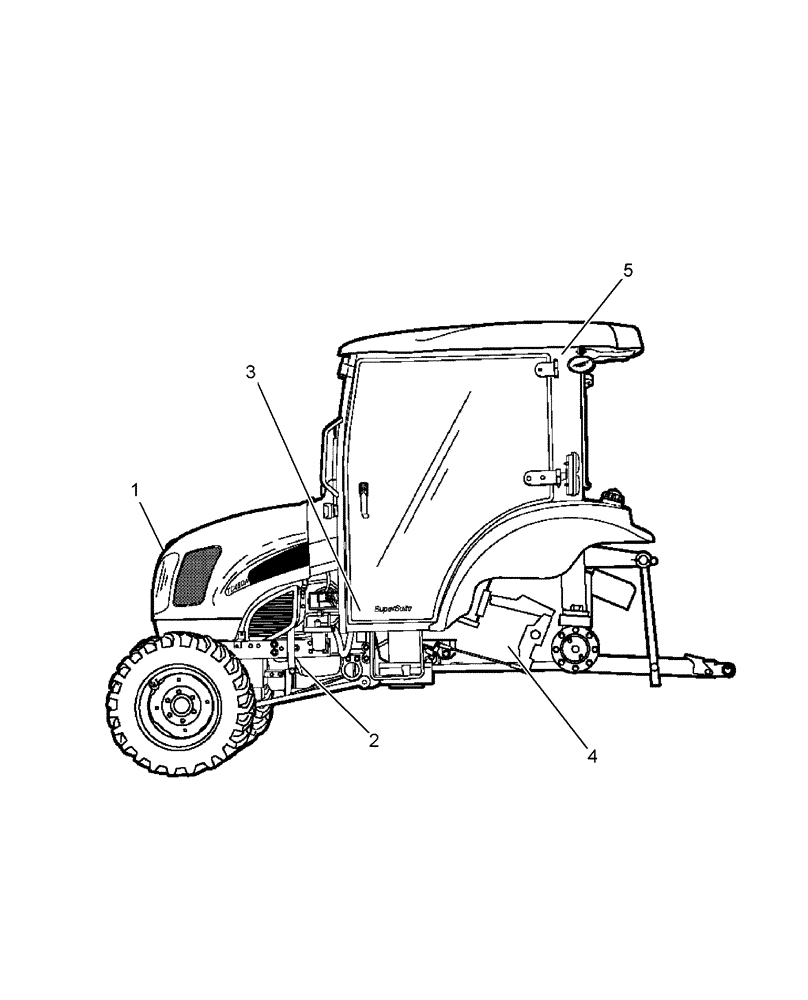

Схема запчастей Case IH FARMALL 50 - (06.01) - WIRE HARNESSES (06) - ELECTRICAL SYSTEMS
3
5
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87585735

WIRE HARNESS

Hood

1шт.

2

84165125

WIRE HARNESS

Front Main Includes Engine Area, Starter, Alternator, Glow Plugs, Fuel Solenoid

1шт.

3

87559328

WIRE HARNESS

Panel Includes Relay & Fuse Areas

1шт.

4

84130838

WIRE HARNESS

Rear Chassis

1шт.

5

87585477

WIRE HARNESS

Cab

1шт.

6

87362723

HARNESS

Fuel Sender Jumper

1шт.

7

84172907

BRACKET

Diagnostics

1шт.

8

87522223

JUNCTION BLOCK

Panel Mounted Power

2шт.

9

87522476

RELAY

70 AMP Power Relay

1шт.
