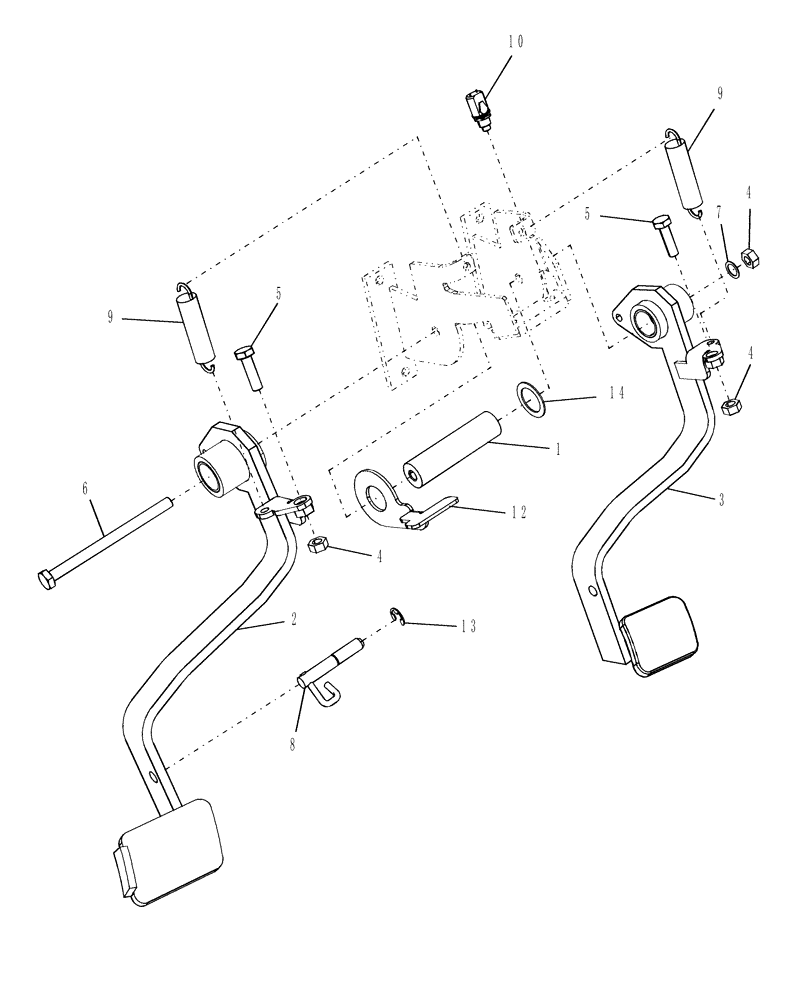

Запчасти Case IH FARMALL 50 (03.55) - DUAL BRAKE PEDALS (03) - TRANSMISSION

1

86402911

SHAFT

Brake Pedals

1шт.

2

86405145

PEDAL

HST, Outside

1шт.

3

86405147

PEDAL

HST, Inside

1шт.

4

100016

NUT,M10 x 1.5, Cl 8

3шт.

5

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

6

331168

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

1шт.

7

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

8

87682496

PIN

Brake Pedals

1шт.

9

86402967

RING

Retaining

1шт.

10

86530740

SPRING

Pedal

2шт.

11

86405060

BRACKET

Switch

1шт.

12

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

1шт.
