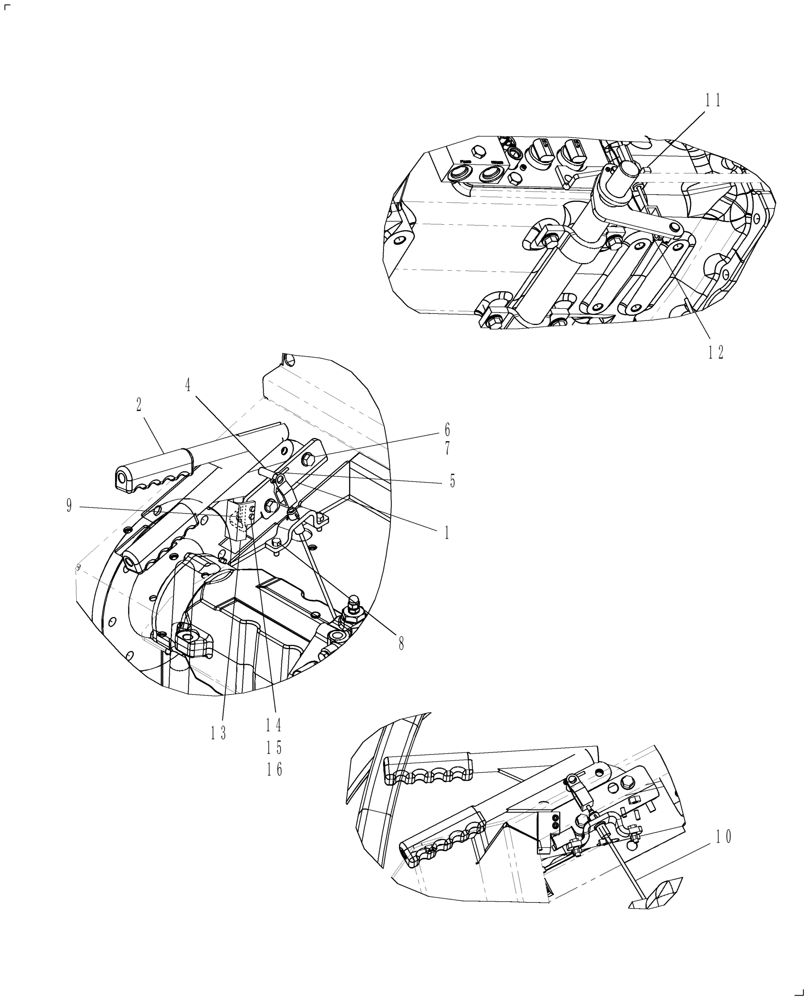

Запчасти Case IH FARMALL 50 (03.53) - PARKING BRAKE - SINGLE PEDAL (03) - TRANSMISSION

1

84252716

BRACKET

Bracket, Hand Brake Mounting

1шт.

2

86543759

HANDLE

W/Rachet

1шт.

3

84140556

BRACKET

Hand Brake Cable Mounting, Used with 84139615 Cable

1шт.

4

84219700

PIN

Park Brake

1шт.

3

84219696

BRACKET

Hand Brake Cable Mounting, Used with 84219698 Cable

1шт.

5

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

2шт.

6

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

9

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

10

84139615

CABLE

Hand Brake, 2 Jam Nuts on Both Cable Ends

1шт.

10

84219698

CABLE

Hand Brake, 2 Jam Nuts on One End & Flange on Other End

1шт.

11

84139617

BRACKET

Hand Brake

1шт.

12

86977785

COTTER PIN,M1.6 x 20mm

1шт.

13

87381850

SWITCH

Parking Brake

1шт.

14

412064

BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd

2шт.

15

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

2шт.

16

100012

NUT,M4 x 0.7, Cl 8

2шт.
