(03.28) - CYLINDER ASSEMBLY

Запчасти Case IH FARMALL 50 (03.28) - CYLINDER ASSEMBLY (03) - TRANSMISSION

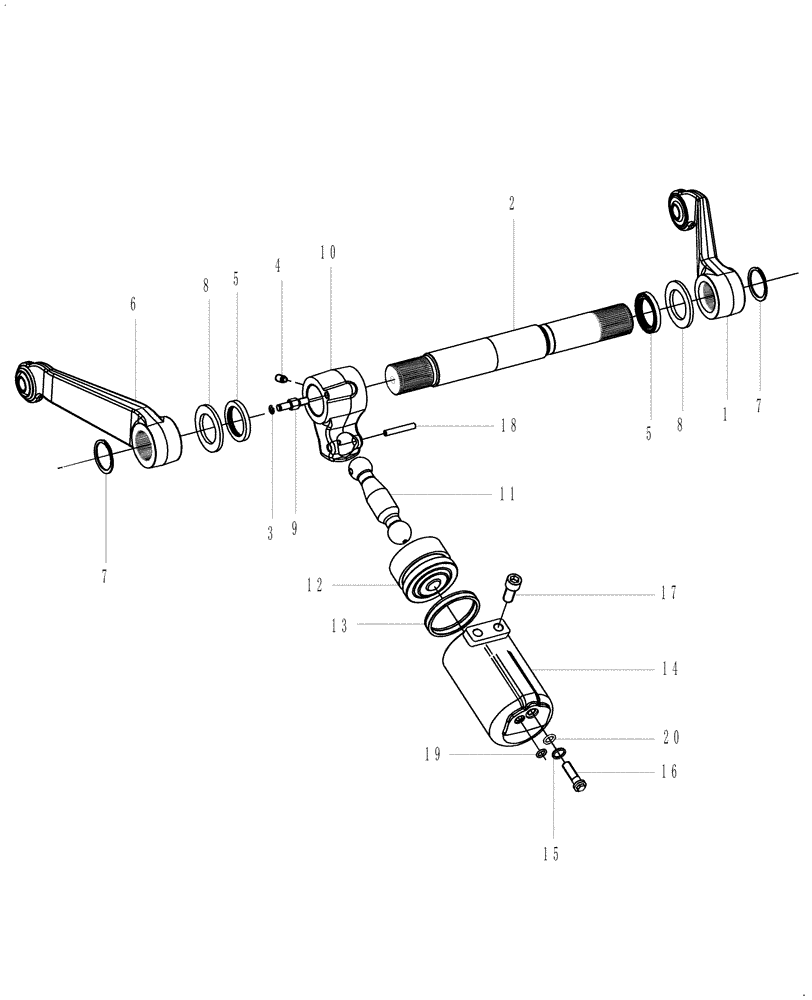

Схема запчастей Case IH FARMALL 50 - (03.28) - CYLINDER ASSEMBLY (03) - TRANSMISSION
5
14
20
11
9
19
18
8
1
3
8
5
15
4
7
13
16
12
7
6
2
17
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84188518

ARM

Left

1шт.

2

84188519

ROCKSHAFT

1шт.

3

11087776

CIRCLIP,Ext., M6, BLO

1шт.

4

PL

PROCURE LOCALLY

Screw M10x20

1шт.

5

NSS

NOT SOLD SEPARAT

Seal Included in 84188505 Seal Kit Refer to Fig. 03.27

1шт.

6

84188521

ARM

Right

1шт.

7

84188523

SNAP RING

2шт.

8

84188524

RING

2шт.

9

84188525

PIN

1шт.

10

84188527

CRANK

1шт.

11

84188528

LINK

1шт.

12

84188529

PISTON

1шт.

13

NSS

NOT SOLD SEPARAT

Seal Included in 84188505 Seal Kit Refer to Fig. 03.27

1шт.

14

84188530

CYLINDER

1шт.

15

NSS

NOT SOLD SEPARAT

Seal Included in 84188505 Seal Kit Refer to Fig. 03.27

1шт.

16

84188531

SCREW

Cylinder

1шт.

17

14422321

HEX SOC SCREW,M12 x 45mm, Cl 8.8, Full Thd

2шт.

18

84188532

PIN

1шт.

19

84188533

SEALING RING,11.91mm ID x 2.62 Thk

SEALRING

1шт.

20

84188534

SEALING RING,15.54mm ID x 2.62 Thk

SEALRING

1шт.
