(03.24) - SHUTTLE CLUTCH

Запчасти Case IH FARMALL 50 (03.24) - SHUTTLE CLUTCH (03) - TRANSMISSION

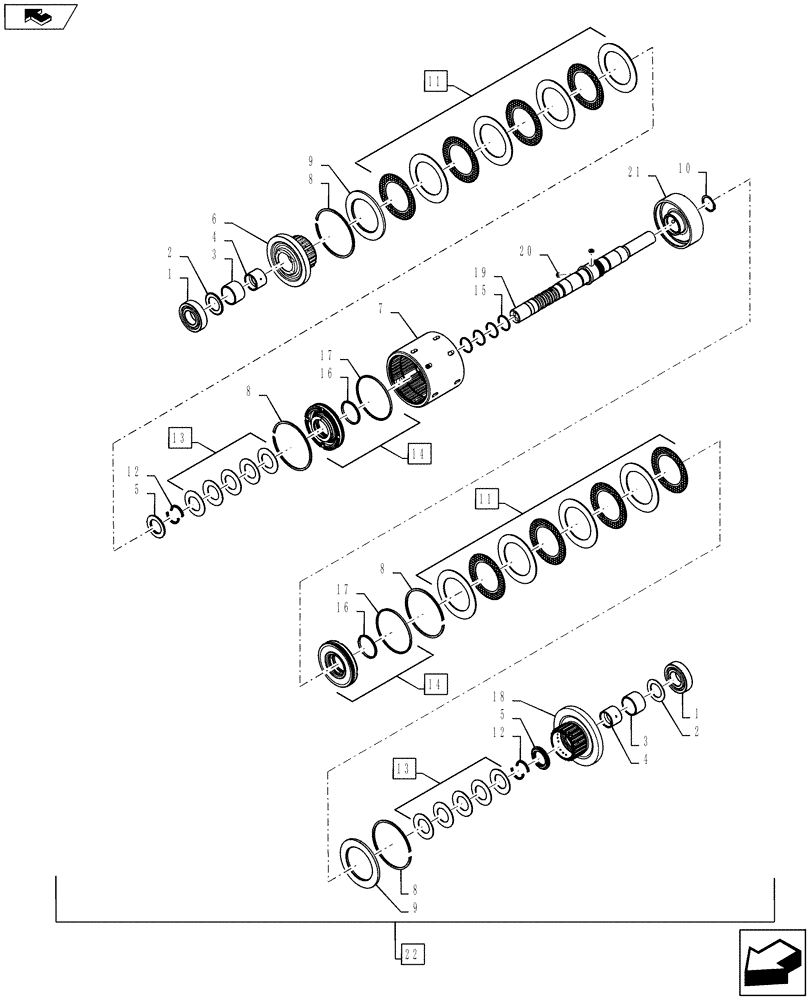

Схема запчастей Case IH FARMALL 50 - (03.24) - SHUTTLE CLUTCH (03) - TRANSMISSION
5
15
19
2
4
2
12
1
13
8
3
13
16
22
17
11
8
8
9
5
8
1
4
12
9
16
20
21
11
3
14
14
7
10
home
18
17
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87481374

BALL BEARING

30x62x16

2шт.

2

GRT3346363

BEARING WASHER

SHUTTLE CLUTCH BEARING WASHER

2шт.

3

87481373

NEEDLE BEARING CAGE

35X47X27

2шт.

4

87481372

BUSHING

ROLLER SUPPORT NEEDLE

2шт.

5

GRT3469743

WASHER

WASHER, Retaining

2шт.

6

GRT3347923

GEAR

FW SHUTTLE CLUTCH 34 Teeth

1шт.

7

GRT3346293

DRUM

DRUM, Shuttle Clutch

1шт.

8

GRT72484

RING

RING, Retaining

4шт.

9

GRT3346323

PLATE

PLATE, Reaction

2шт.

10

GRT70206

RING

RING, Retaining

1шт.

11

87481367

KIT

Shuttle Clutch Disc

1шт.

12

GRT3469733

HALF-RING

HALF-RING, Retaining

4шт.

13

GRT3VT01353

SPRING KIT

KIT, SPRING Disc

1шт.

14

GRT3VT01343

PISTON

PISTON, Shuttle Clutch

2шт.

15

87481360

SEALING RING

Piston Ring

4шт.

16

87481368

SEAL

Double Delta Hydraulic

2шт.

17

87481369

SEAL

Double Delta Hydraulic

2шт.

18

GRT3347933

GEAR

RW SHUTTLE CLUTCH 30 Teeth

1шт.

19

GRT3VT01373

CLUTCH INPUT SHAFT

SHAFT, CLUTCH INPUT

1шт.

20

GRT3346303

NOZZLE

NOZZLE

2шт.

21

GRT3347683

SUPPORT

SUPPORT, Clutch

1шт.

22

GRT3469683

CLUTCH OVERHAUL KIT

Includes 1 - 14, 16 - 21

1шт.
