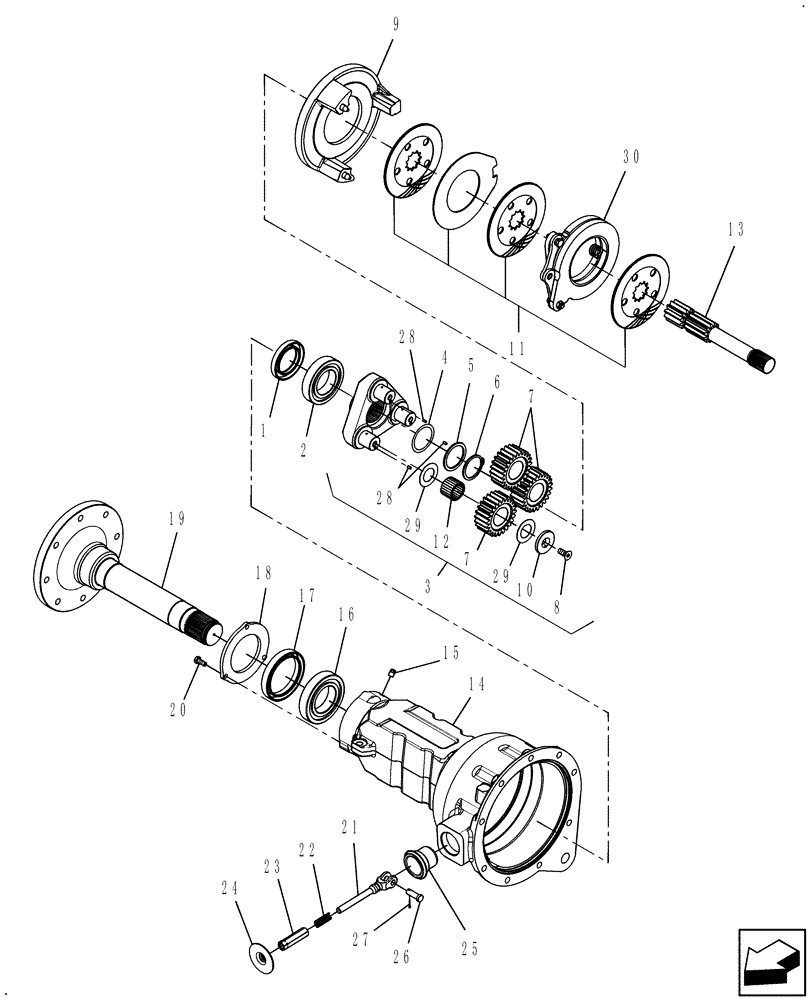

Запчасти Case IH FARMALL 50 (03.22) - RH FINAL REDUCTION HOUSING (03) - TRANSMISSION

1

87481411

SEAL

57X85X12

1шт.

2

87481412

ROLLER BEARING,55 mm ID x 100 mm OD x 21 mm

55X100X21

1шт.

3

NS

NOT SERVICED

PLANETARY CARRIER

1шт.

4

87387607

SHIM

REGISTER RING

1шт.

5

87387605

SPACER

PLANETARY CARRIER SPACER

1шт.

6

GRT3347733

RING

RING, Retaining

1шт.

7

87387596

PINION

PLANETARY GEAR

3шт.

8

84145871

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8

SCREW M10X25

3шт.

9

GRT3VT01453

FLANGE

FLANGE, Brake Disc Support

1шт.

10

87654057

SPACER

PLANETARY GEAR WASHER

3шт.

11

87481408

KIT

Kit

1шт.

12

84146928

BEARING, ROLLER, CYL

PLANETARY GEAR

3шт.

13

87370376

SHAFT

LH DIFFERENTIAL SHAFT

1шт.

14

87481415

AXLE HOUSING

RH SIDE REDUCTION

1шт.

15

NS

NOT SERVICED

TAPERED THREADED PLUG M10X1X14

1шт.

16

87481413

ROLLER BEARING,60 mm ID x 110 mm OD x 22 mm

60X110X22

1шт.

17

87481409

SEAL

85X110X16

1шт.

18

87387599

CAP

WHEEL SHAFT COVER

1шт.

19

87573415

SHAFT

Axle Flange Wheel

1шт.

20

GRT71149

SCREW

SCREW M8X20 CL 8.8

3шт.

21

GRT3348203

ROD

ROD, Brake

1шт.

22

GRT3459233

SPRING

SPRING, Bellow Cover Retaining

1шт.

23

GRT3348193

BOLT

BOLT, Brake Rod Stroke Set

1шт.

24

87387625

GUARD

BELLOW COVER

1шт.

25

82037652

SEAL,12mm ID x 57mm OD x 28mm Thk

Anti-Dust Brake Rod

1шт.

26

GRT3348123

PIN

BRAKE ROD LINKAGE PIN

1шт.

27

87481414

COTTER PIN

Split, 3.2x18

1шт.

28

87654056

PLANETARY GEAR PIN ANTI-ROT. DOWEL

3шт.

29

GRT3347713

SPACER

PLANETARY GEAR WASHER

6шт.

30

NS

NOT SERVICED

BRAKE MECHANISM

1шт.
