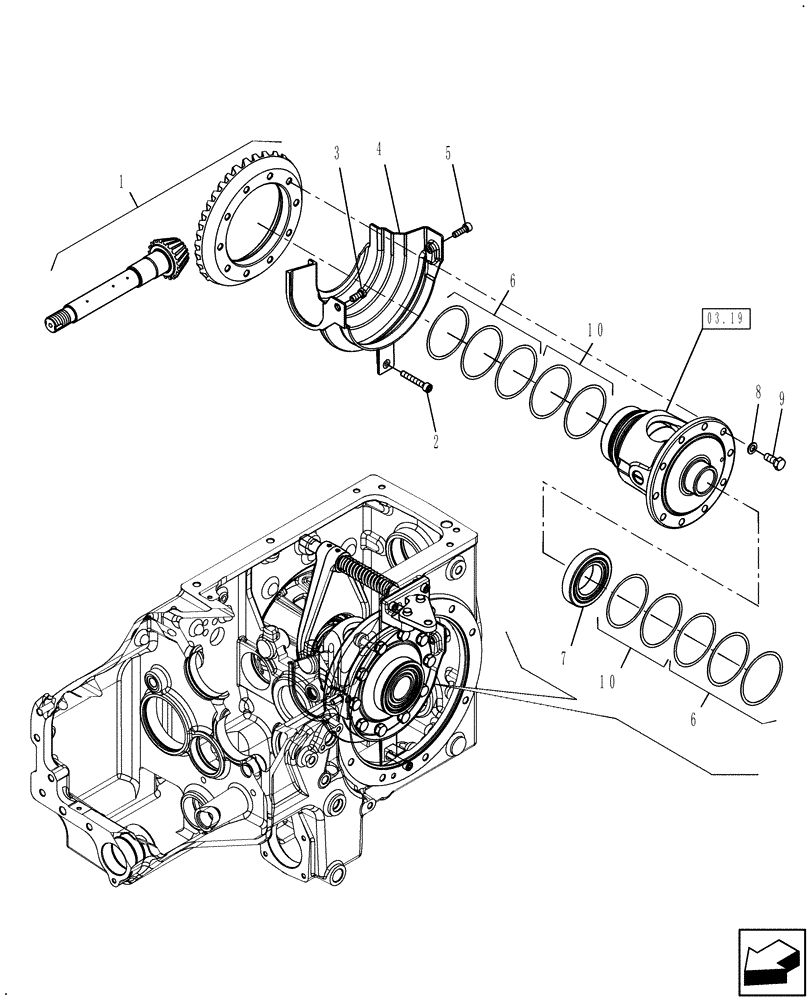

Запчасти Case IH FARMALL 50 (03.18) - BEVEL GEAR SET (03) - TRANSMISSION

1

GRT3458683

BEVEL GEAR

GEAR, BEVEL Set

1шт.

2

GRT72347

BOLT

SCREW M8X50

1шт.

3

GRT71149

SCREW

SCREW M8X20 CL 8.8

1шт.

4

GRT3478333

SHIELD

SHIELD, Bevel Gear Set

1шт.

5

GRT71386

SCREW

SCREW M8X25 CL 8.8

1шт.

6

87387604

SHIM

REGISTER RING

6шт.

7

87481387

TAPERED BEARING

Taper 50x90x21.75

1шт.

8

GRT70097

WASHER

WASHER

10шт.

9

84145861

BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9

HEXAGONAL HEAD SCREW M10X25 CL 10.9

10шт.

10

87387606

SHIM

REGISTER RING

4шт.
