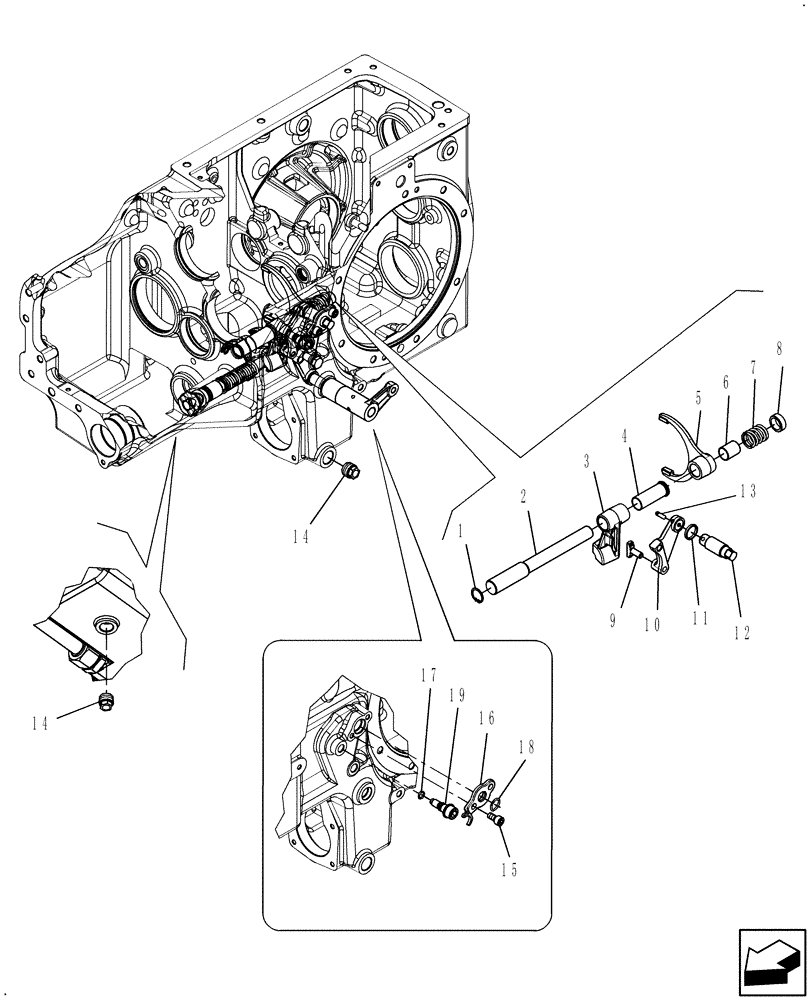

Запчасти Case IH FARMALL 50 (03.11) - TRANSMISSION DISENGAGEMENT (03) - TRANSMISSION

1

GRT72519

RING

Retaining

1шт.

2

GRT3459083

ROD

SLIDING FORK ROD

1шт.

3

GRT3474023

FORK

TRANSMISSION DISENGAGEMENT FORD

1шт.

4

GRT3484273

BUSHING

SLIDING BUSHING

1шт.

5

GRT3474053

SHIFTER FORK

PINION AXIS DISENGAGEMENT FORK

1шт.

6

GRT3458593

BUSHING

BUSHING 18X20X25

1шт.

7

GRT3459073

TENSION SPRING

TRANSMISSION UNLOCKING SRING

1шт.

8

GRT3484263

SPACER

FWD ENGAGEMENT INTERNAL SPACER

1шт.

9

GRT3346883

PIN

PTO Lever Sliding

1шт.

10

GRT3474033

CAM

Transmission Disengagement Fork

1шт.

11

87481403

O-RING,18.72MM ID x 2.62MM Width

Seal, 2.62x18.72

1шт.

12

GRT3474063

ROD

Transmission Disengagement Cam ROD

1шт.

13

GRT71694

PIN

Spring Slit

1шт.

14

87481385

PLUG

Thread Magnetic Ext. Hex M22X1.5

2шт.

15

GRT70160

BOLT

HEX SOCKET HEAD CAP SCREW M8X16

2шт.

16

GRT3474013

COVER

TRANSMISSION DISENGAGEMENT SYSTEM COVER

1шт.

17

87481342

O-RING,9.25MM ID x 1.78MM Width

SEAL 1.78X9.25 {

1шт.

18

GRT70587

RING

DETENT M14X1.5

1шт.

19

GRT3474043

SCREW

RETAINING SCREW

1шт.
