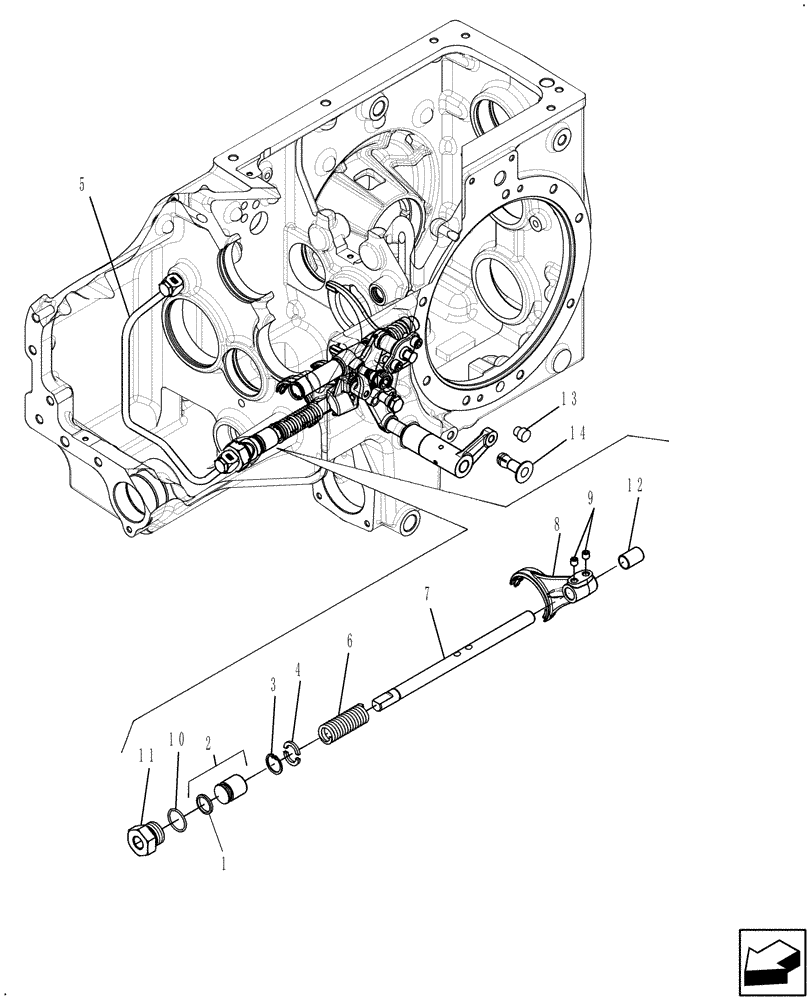

Запчасти Case IH FARMALL 50 (03.10.01) - FWD ENGAGEMENT (03) - TRANSMISSION

1

87481403

O-RING,18.72MM ID x 2.62MM Width

Seal, 2.62x18.72

1шт.

2

GRT3VT01413

PISTON

FWD PISTON

1шт.

3

GRT72690

RING

RING, Retaining

1шт.

4

GRT3495373

PISTON RING

FWD End Stop Spacer

2шт.

5

GRT3474303

PIPE

PIPE, FWD Coupling Inlet

1шт.

6

GRT3469653

SPRING

SPRING, FWD Piston Return

1шт.

7

GRT3495363

SHAFT

FWD MID PTO FORK SHIFTING ROD

1шт.

8

87481381

FORK

FWD ENGAGEMENT

1шт.

9

GRT72389

SCREW

SCREW M8X10 CL 10.9

2шт.

10

GRT3474503

OIL SEAL

O-RING SEAL 19.4X2.1

1шт.

11

GRT3474213

REDUCER

REDUCER, FWD Piston

1шт.

12

GRT3347943

BUSHING

BUSHING 15X17X25

1шт.

13

87481358

PLUG

THREADED PLUG WITH O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

EXPANDER PLUG

1шт.
