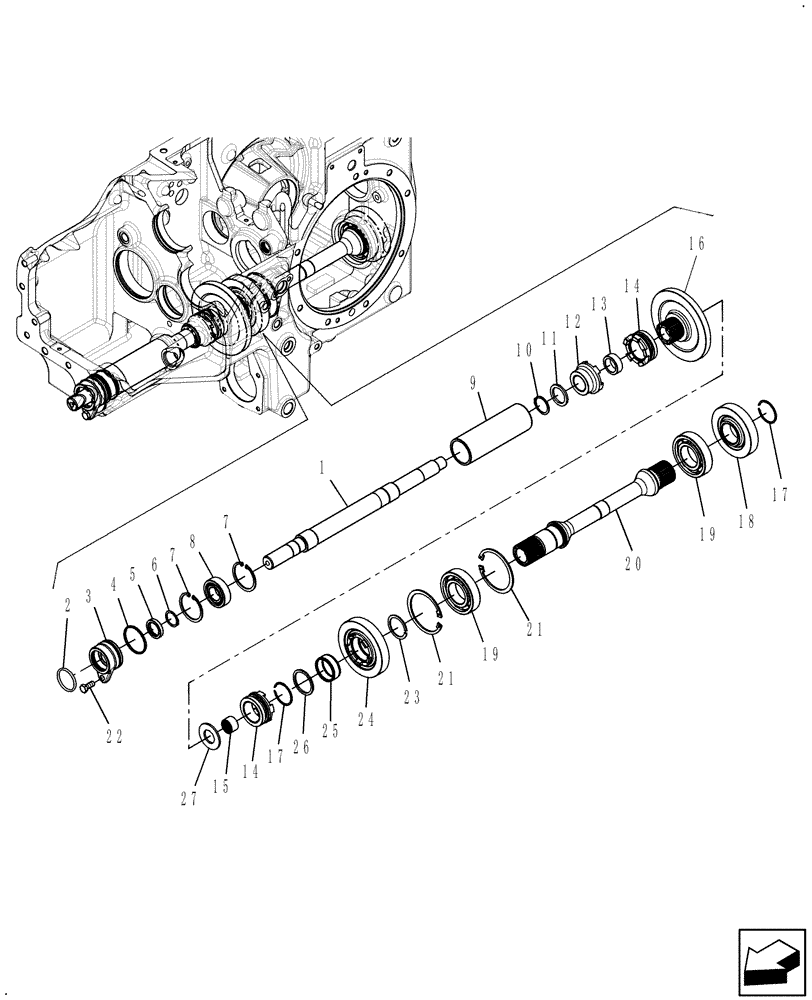

Запчасти Case IH FARMALL 50 (03.09) - FWD SHAFT & MID PTO SHAFT (03) - TRANSMISSION

1

87481380

SHAFT

FWD Output

1шт.

2

87481395

O-RING,37.69MM ID x 3.53MM Width

Seal 3.53X37.69

1шт.

3

GRT3346613

COVER

FWD OUTPUT SHAFT COVER

1шт.

4

87481404

O-RING,2.62mm Thk x 47.29mm ID

Seal, 2.62x47.29

1шт.

5

87481399

SEAL

25x35x7

1шт.

6

GRT70486

RING

RETAINING RING

1шт.

7

GRT71187

RING

RETAINING RING

2шт.

8

87481389

ROLLER BEARING,25 mm ID x 52 mm OD x 15 mm

25X52X15

1шт.

9

NS

NOT SERVICED

FWD SHAFT GUARD

1шт.

10

GRT70206

RING

RING, Retaining

1шт.

11

GRT3469573

RING

WASHER, FWD Gear Coupling Sleeve

1шт.

12

GRT3469533

SLEEVE

SLEEVE, FWD Fixed Coupling

1шт.

13

GRT3469563

SPACER

SPACER, FWD Gear

1шт.

14

GRT3469523

SLEEVE

SLEEVE, Dog Clutch Coupling Sliding

2шт.

15

87481402

NEEDLE BEARING,20 mm ID x 26 mm OD x 16 mm

20X26X16

1шт.

16

GRT3469513

GEAR

GEAR, FWD

1шт.

17

GRT72689

RING

RING, Retaining TYPE SW

2шт.

18

GRT3345863

IDLER GEAR

GEAR, IDLER

1шт.

19

87481394

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

40X80X18

2шт.

20

GRT3465753

DRIVE SHAFT

SHAFT, DRIVE Mid PTO

1шт.

21

GRT70232

RING

Ring, Retaining

2шт.

22

GRT71149

SCREW

SCREW M8X20

1шт.

23

GRT70193

RING

RING, Retaining

1шт.

24

GRT3469583

IDLER GEAR

GEAR, IDLER

1шт.

25

87481390

NEEDLE BEARING,40 mm ID x 45 mm OD x 17 mm

40X45X17

1шт.

26

GRT3469633

RING

IDLER GEAR WASHER

1шт.

27

GRT3469553

RING

FWD GEAR WASHER

1шт.
