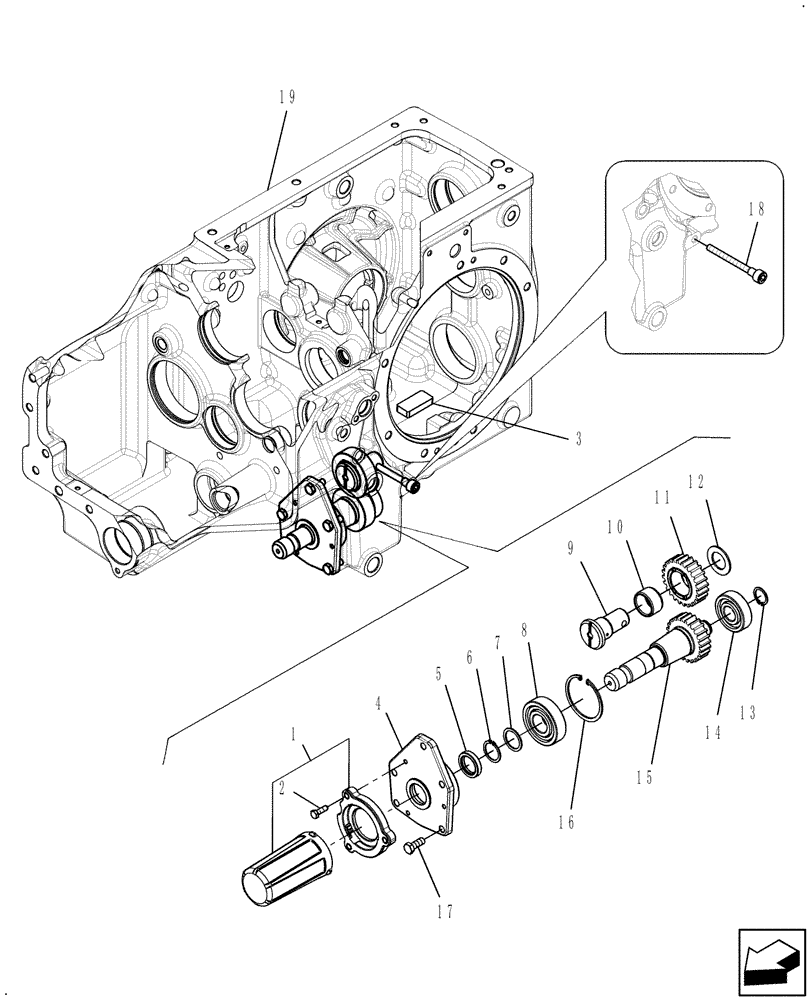

Запчасти Case IH FARMALL 50 (03.08) - MID PTO (03) - TRANSMISSION

1

87481340

GUARD

PTO

1шт.

2

GRT70450

SCREW

HEXAGON HEAD SCREW MC620 CL 8.8

3шт.

3

GRT3291733

CLAMP

MAGNET

1шт.

4

NS

NOT SERVICED

MID PTO OUTPUT SHAFT COVER

1шт.

5

87481399

SEAL

25X35X7

1шт.

6

GRT70486

RING

RETAINING RING

1шт.

7

GRT3347303

RING

MID PTO OUTPUT SHAFT WASHER

1шт.

8

87481361

ROLLER BEARING

25X62X17

1шт.

9

GRT3346933

PIN

MID PTO IDLER GEAR PIN

1шт.

10

87481425

NEEDLE BEARING

28X34X20

1шт.

11

GRT3345893

IDLER GEAR

GEAR, Mid PTO Idler 053I--848310--01--547-- P240A

1шт.

12

GRT3347313

RING

WASHER, MID PTO Idler Gear 045A--731829--01--547--S590C

1шт.

13

GRT70961

RING

RING, Retaining 045A--731829--01--547--S590C

1шт.

14

87481424

ROLLER BEARING,20 mm ID x 52 mm OD x 15 mm

20X52X15

1шт.

15

87481423

SHAFT

MID PTO OUTPUT SHAFT

1шт.

16

GRT70778

RING

RING, Retaining 045A--731829--01--547--S590C

1шт.

17

GRT70259

SCREW

SCREW M8X22 040V--731815--01--547--F010L

5шт.

18

GRT3458583

PIN

PIN, Idler Gear Fixing 080P--732690--01--547--F310L

1шт.

19

87481375

TRANSMISSION HOUSING

Rear

1шт.

20

GRT71500

PLUG

PLUG, Tapered Threaded M10x1x14

1шт.
