(03.17) - REAR PTO CLUTCH

Запчасти Case IH FARMALL 50 (03.17) - REAR PTO CLUTCH (02) - ENGINE EQUIPMENT

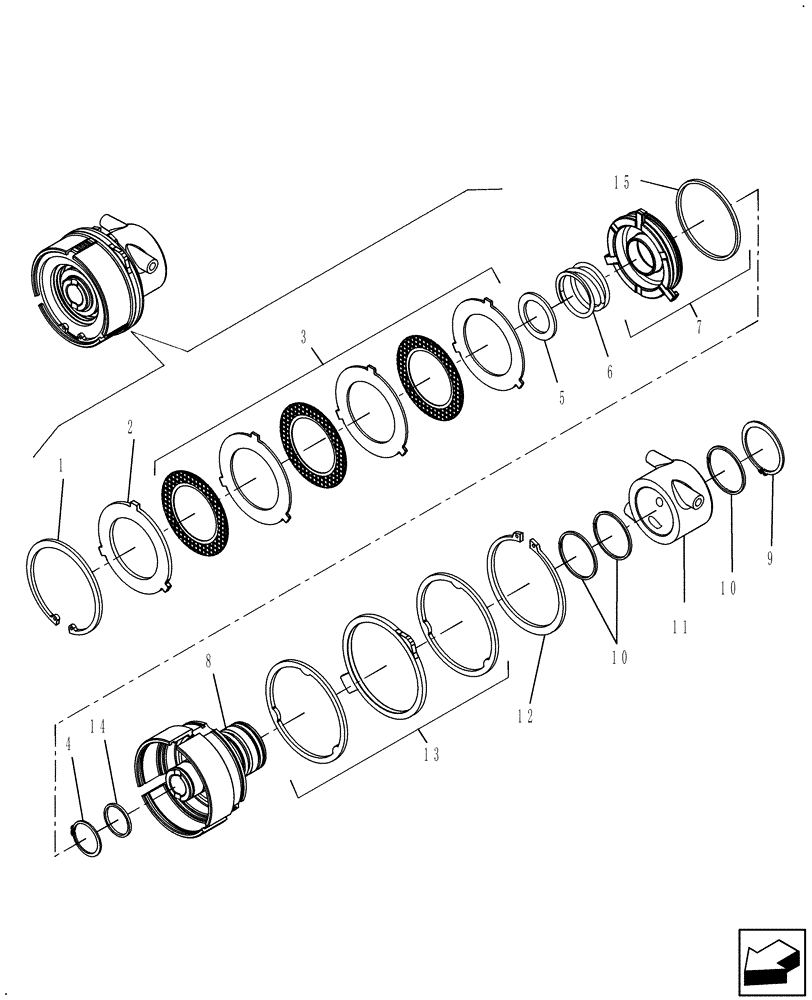

Схема запчастей Case IH FARMALL 50 - (03.17) - REAR PTO CLUTCH (02) - ENGINE EQUIPMENT
12
7
11
6
3
10
9
10
14
5
4
13
2
8
15
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

GRT72496

RING

RING, Retaining

1шт.

2

GRT3458933

DISC

DISC, Reaction

1шт.

3

87481427

KIT

Kit

1шт.

4

GRT70061

RING

RING, Retaining

1шт.

5

GRT3346823

SPRING WASHER

WASHER, SPRING

1шт.

6

GRT3346813

SPRING

SPRING, Piston Return

1шт.

7

GRT3VT01533

PISTON

PISTON, PTO Clutch

1шт.

8

GRT3458863

CLUTCH HOUSING

HOUSING, CLUTCH Rear PTO

1шт.

9

GRT70201

RING

RiNG, Retaining

1шт.

10

87481428

SEALING RING

Piston Ring Rotating

3шт.

11

GRT3346553

BODY

BODY, Rear PTO Clutch Distributor

1шт.

12

GRT72597

RING

RING, Retaining

1шт.

13

87481426

KIT

Kit, PTO

1шт.

14

87481430

O-RING

Seal 2.62x32.99

1шт.

15

87481429

O-RING

Seal 3.53x85.32

1шт.
