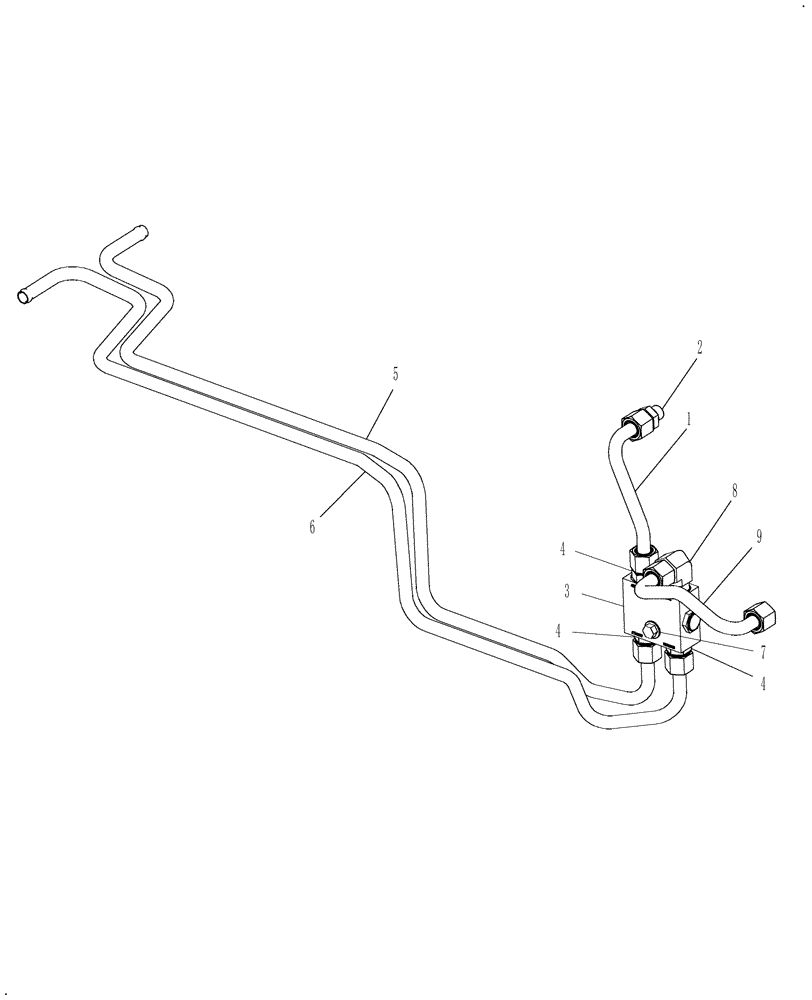

Запчасти Case IH FARMALL 50 (02.05.01) - OIL COOLER BYPASS VALVE & TUBES (02) - ENGINE EQUIPMENT

1

87595719

HYD TUBE,14.102 mm ID x 15.88 mm OD

Cooler Bypass Valve Inlet

1шт.

2

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

1шт.

3

87389351

VALVE

Oil Cooler Bypass

1шт.

4

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

3шт.

5

87595720

HYD TUBE,14.102 mm ID x 15.88 mm OD

Bypass Valve to Cooler Inlet

1шт.

6

87595717

HYD TUBE,14.102 mm ID x 15.88 mm OD

Cooler Outlet to Bypass Valve

1шт.

7

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

1шт.

8

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

90 Adj 5/8

1шт.

9

87578949

HYD TUBE,14.1 mm ID x 15.88 mm OD x 161.8, 55 mm L

Cooler Bypass Valve Outlet

1шт.
