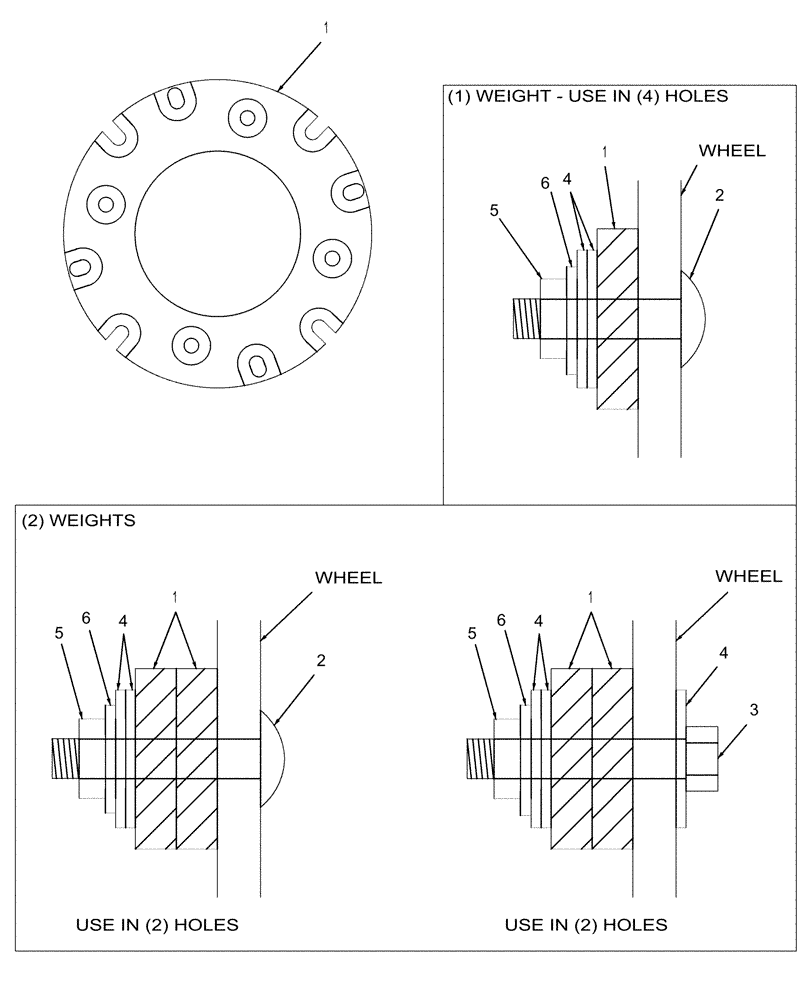

Запчасти Case IH FARMALL 50 (11.04) - REAR WHEEL WEIGHTS, 105 LBS - 710470026 (11) - WHEELS/TRACKS

1

710470026

WHEEL WEIGHT

Rear, 105 Lbs, AG & Industrial Bar

1шт.

Max of 2 per Wheel, Ag & Industrial Bar

1шт.

2

280563

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

Used W/(1) Weight Per Wheel

4шт.

2

280563

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

Used W/(2) Weight Per Wheel

2шт.

3

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

Used With (2) Weights Per Wheel

2шт.

4

495-21069

WASHER,5/8"

Used with (1) weight per wheel

8шт.

4

495-21069

WASHER,5/8"

Used with (2) weights per wheel

10шт.

5

425-1010

NUT,5/8"-11, G5

Use (4) with both (1) and (2) Weights per Wheel

4шт.

6

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

(5/8") - Use (4) With Both (1) and (2) Weights Per Wheel

4шт.
