(10.20) - CAB ROOF SKYLIGHT BRUSH GUARD KIT - 718002006

Запчасти Case IH FARMALL 50 (10.20) - CAB ROOF SKYLIGHT BRUSH GUARD KIT - 718002006 (10) - OPERATORS PLATFORM/CAB

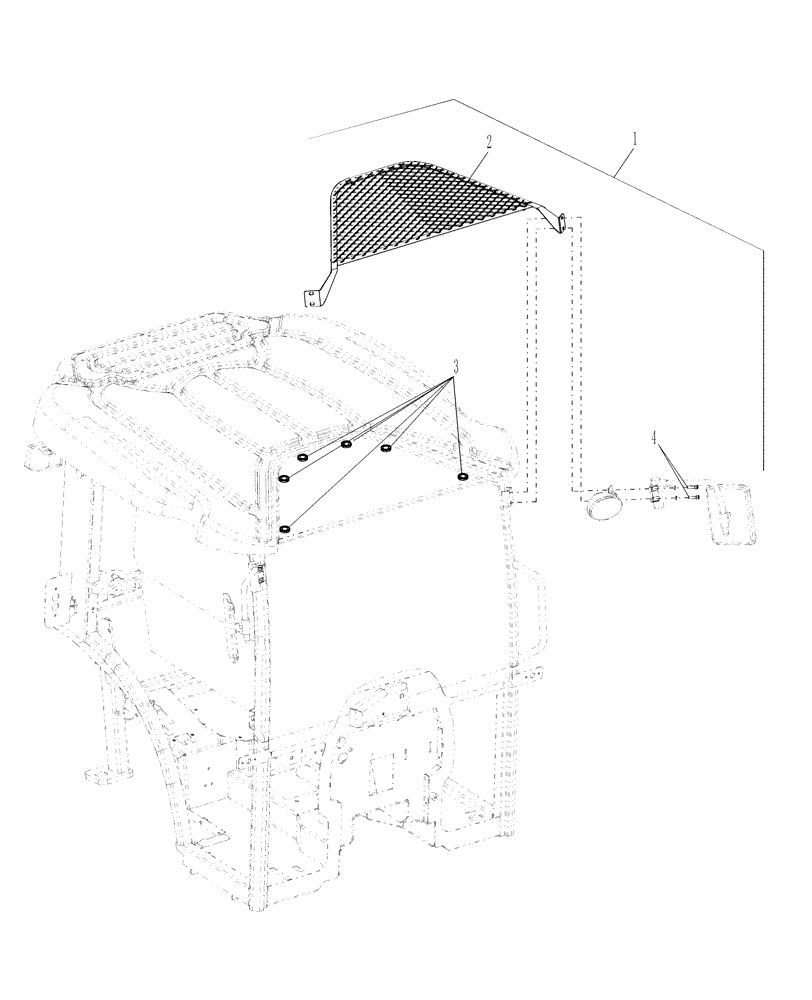

Схема запчастей Case IH FARMALL 50 - (10.20) - CAB ROOF SKYLIGHT BRUSH GUARD KIT - 718002006 (10) - OPERATORS PLATFORM/CAB
1
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

718002006

DIA KIT, TRACTOR

Brush Guard Kit Includes: Ref. 2-4

1шт.

Order thru Wholegoods

1шт.

2

NS

NOT SERVICED

Brush Guard

1шт.

3

87557864

BUMPER

Adhesive Backed

6шт.

4

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

4шт.

Выбрано товаров: 5
