Запчасти Case IH FARMALL 50 (10.14) - STEERING COLUMN, TILT/TELESCOPING (10) - OPERATORS PLATFORM/CAB

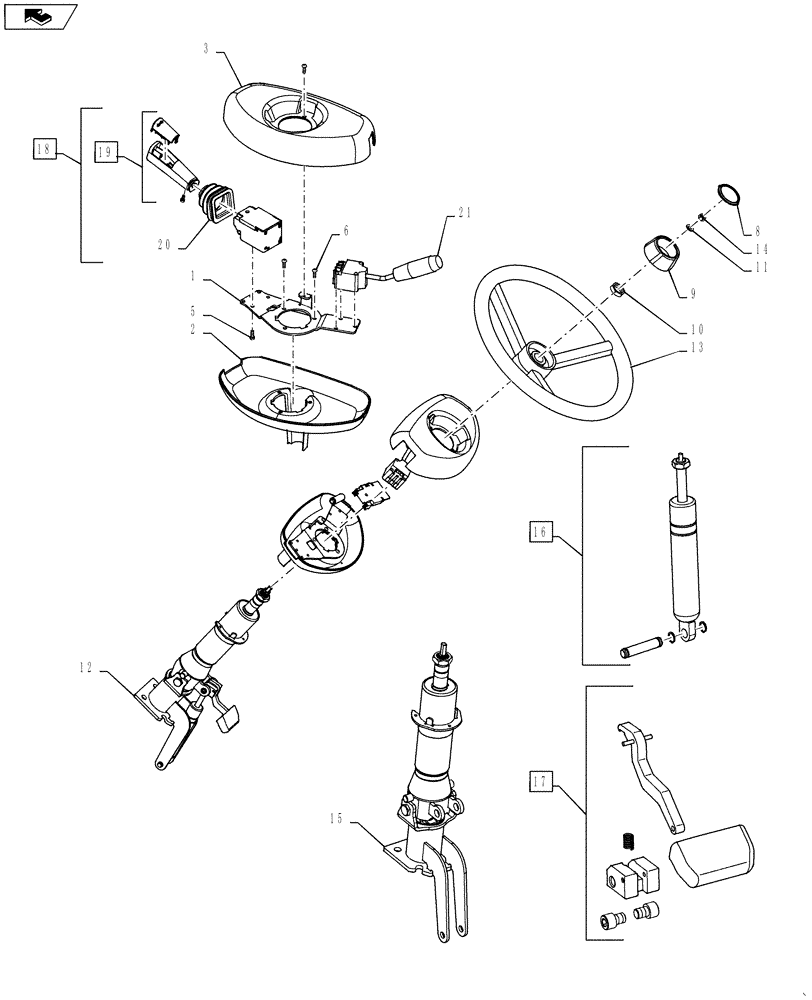

Схема запчастей Case IH FARMALL 50 - (10.14) - STEERING COLUMN, TILT/TELESCOPING (10) - OPERATORS PLATFORM/CAB
home
14
18
15
20
19
21
17
12
11
16
8
10
1
2
5
13
3
6
9

Артикул

Название

Примечание

Количество

1

87731473

PLATE

Plate, F/N/R

1шт.

2

87483454

LEVER GUIDE

F/N/R Bottom

1шт.

3

87483453

PANEL

F/N/R Top

1шт.

5

9844207

SCREW,Phillips Drive, Oval HD, M4 x 8mm, Cl 4.8

3шт.

6

760-34313

SELF-TAP SCREW,Pan Hd, M4.2 x 13

7шт.

8

87302798

CAP,54mm OD, Black

Hub

1шт.

9

87302160

KNOB

1шт.

10

86530985

JAM NUT,13/16"-20

1шт.

11

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

12

84210865

STEERING COLUMN

Steering Column

1шт.

13

9821708

STEERING WHEEL

1шт.

14

126712A1

TUBE,3" OD, 1962 mm Length

1шт.

15

84198649

STEERING COLUMN

Upper Column

1шт.

16

84198650

GAS STRUT

Gas Strut

1шт.

17

84198801

LEVER

Tilt Lever

1шт.

18

84244148

CONTROL LEVER

Shuttle Includes: Ref. 19 & 20

1шт.

84244148R

REMAN-JOYSTICK

FARMALL 40, FARMALL 45, FARMALL 50 ALL CVT TRANSMISSION W/CAB (3/09-)

1шт.

84244148C

CONTROL LEVER

Return Number

1шт.

19

84324103

LEVER

Lever, Includes: Decal & Hardware

1шт.

20

84324105

BOOT

1шт.

21

87522472

SWITCH

Head Light/Turn Signal Control Stalk

1шт.

Requires (3) Ref. 6 760-34313 Screw & (3) of 322355 M4 x 10 Washer not illustrated

1шт.

Выбрано товаров: 22
