Запчасти Case IH FARMALL 50 (07.05.01) - REAR REMOTE HYDRAULIC VALVE #2 POSITION COMPLETING KIT, 12X12 - 719936036 (07) - HYDRAULIC SYSTEM

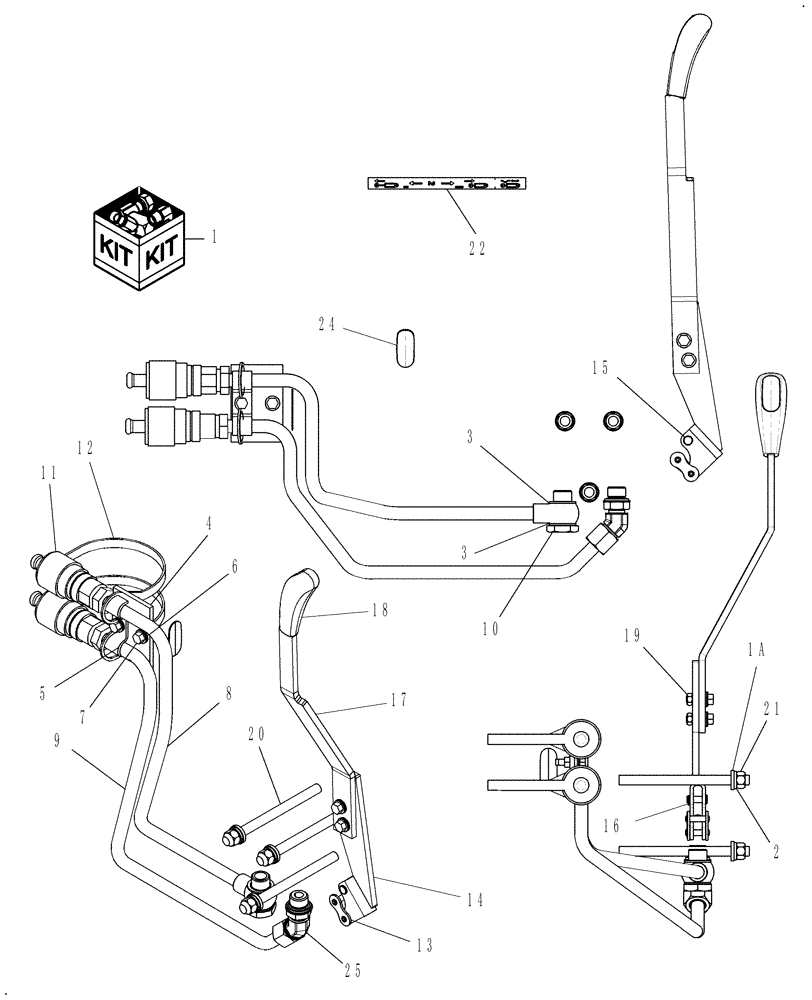

Схема запчастей Case IH FARMALL 50 - (07.05.01) - REAR REMOTE HYDRAULIC VALVE #2 POSITION COMPLETING KIT, 12X12 - 719936036 (07) - HYDRAULIC SYSTEM
7
5
21
3
24
13
22
14
8
11
15
2
9
12
3
16
10
18
25
4
6
19
20
1
17
1a

Артикул

Название

Примечание

Количество

1

719936036

DIA KIT, ADD PROD

Single Spool Remote Kit, Remote Control Valve #2

1шт.

1a

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

3шт.

2

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

3

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2шт.

4

87327028

45 ELBOW

45 Degree Elbow

1шт.

5

86524859

CLAMP

Tube

1шт.

6

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

7

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

8

87522335

HYD TUBE,9.7 mm ID x 12.7 mm OD x 355.78, 130.9 mm L

Tube

1шт.

9

87522336

HYD TUBE,9.7 mm ID x 12.7 mm OD x 343.5, 185.3 mm L

Tube

1шт.

10

5100984

BANJO BOLT,M18 x 1.5, 34mm L

1шт.

11

256231

COUPLING, QUICK, FEM

Includes: 86528546 O-Ring Male Coupler is 9801618

2шт.

12

5186723

DUST CAP,24mm, Black

Dust Plug, 1/2" Coupler, Blue

2шт.

13

5116896

LINK,19.05mm Pitch

1шт.

14

87522339

BRACKET

Bracket

1шт.

15

5172456

PIN,6mm OD x 20mm L

Spool Connection

1шт.

16

11087776

CIRCLIP,Ext., M6, BLO

1шт.

17

86554976

LEVER

Remote #2

1шт.

18

86403811

KNOB

Remote 2, Wheat

1шт.

19

86625072

NUT,Hex, M6, Cl 10

Nut

2шт.

20

5150104

STUD,3/8" - 24 x 5"

Stud

3шт.

21

87690485

NUT

Nut

3шт.

22

86405758

DECAL

Remote

1шт.

24

86404551

DECAL

Remote 2 Logo

1шт.

25

87327028

45 ELBOW

1шт.

Выбрано товаров: 25
