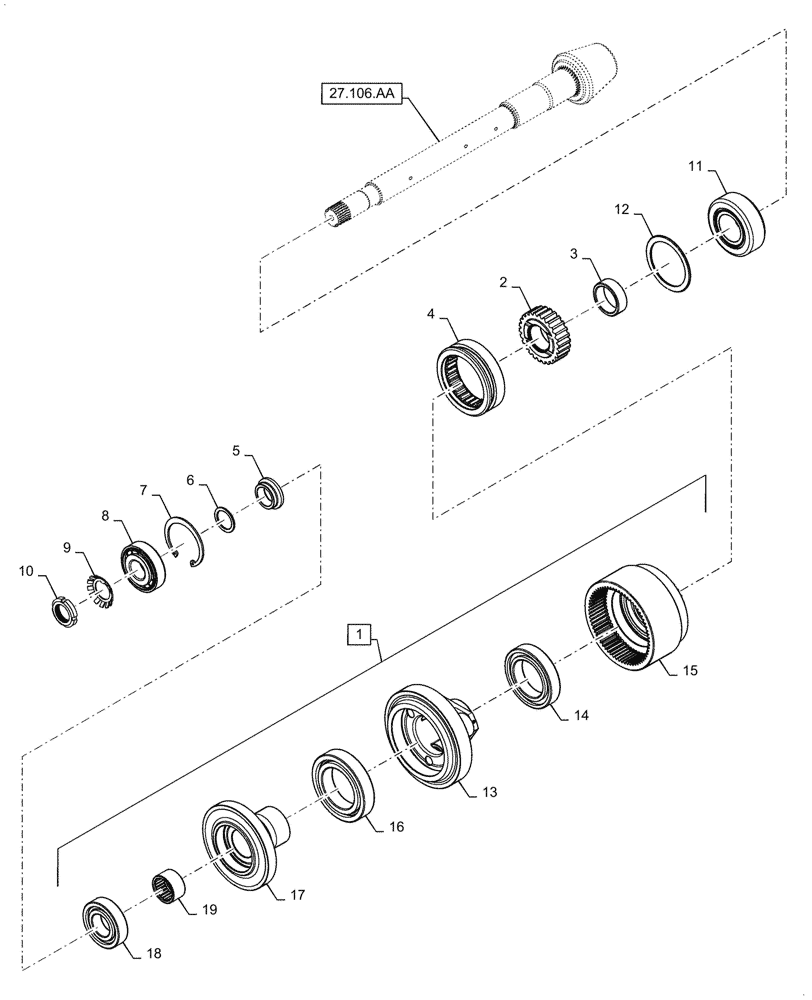

Запчасти Case IH FARMALL 45C (27.120.AF) - PLANETARY GEAR (27) - REAR AXLE SYSTEM

1

47420095

PLANETARY GEAR

Rear Axle, Incl 13 - 19

1шт.

2

47395004

HUB

Transmission Disengagement

1шт.

3

47395113

SPACER

Pinion

1шт.

4

47391710

GEAR

Parking, 26 Tooth

1шт.

5

47372376

SPACER

Pinion, 25.2mm ID x 40mm OD x 13mm Thk

1шт.

6

47421172

SHIM KIT

Pinion

1шт.

7

370012

RING,M62, Internal

1шт.

8

26800330

TAPERED BEARING,25mm ID x 62mm OD x 18.25mm W

1шт.

9

47476763

WASHER

Star, 25mm ID x 42mm OD x 1.25mm Thk

1шт.

10

86016544

LOCK NUT

Narrow, M25 x 1.5

1шт.

11

47372373

BEARING ASSY

36.512mm ID x 76.2mm OD x 29.37mm W

1шт.

12

47421176

SHIM KIT

Pinion

1шт.

13

47420107

CARRIER

Planetary

1шт.

14

87481417

ROLLER BEARING,50 mm ID x 80 mm OD x 16 mm

1шт.

15

47460940

GEAR

Ring, 66 Tooth

1шт.

16

87481416

ROLLER BEARING,55 mm ID x 90 mm OD x 18 mm

1шт.

17

47391735

GEAR

Sun, 49 Tooth/ 30 Tooth

1шт.

18

87481374

BALL BEARING

30mm ID x 62mm OD x 20mm W

1шт.

19

87481384

NEEDLE BEARING

30mm ID x 37mm OD x 20mm W

1шт.
