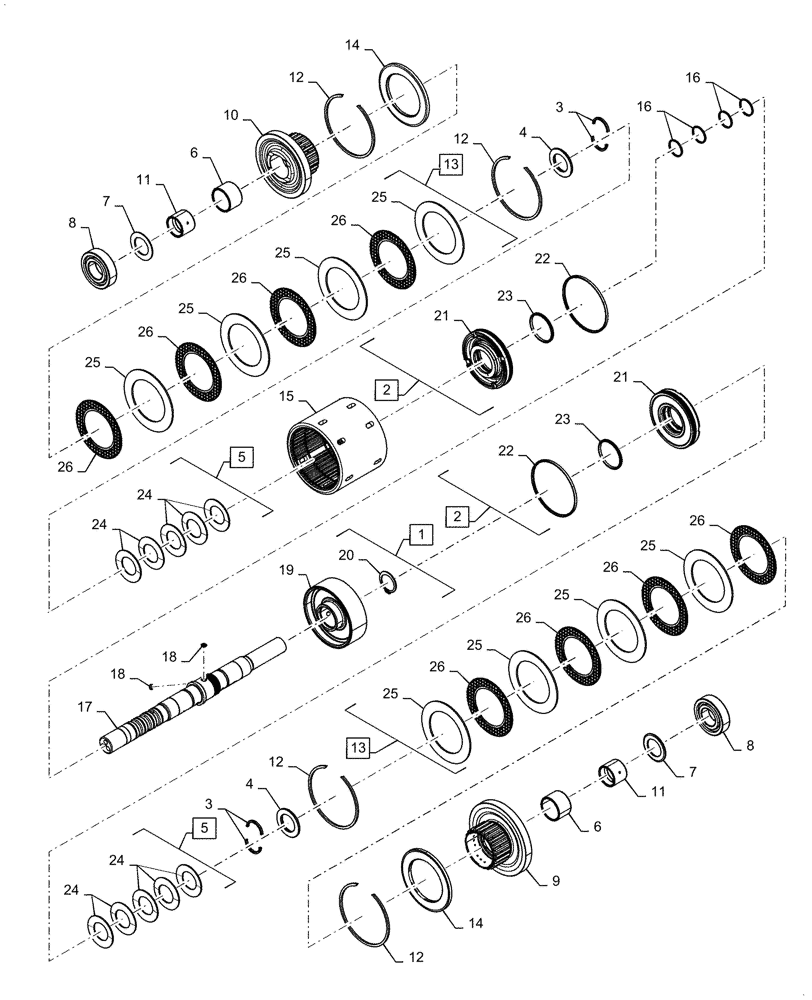

Запчасти Case IH FARMALL 45C (21.507.AF) - FORWARD/REVERSE SHUTTLE CLUTCH (21) - TRANSMISSION

1

47369314

SHAFT

Transmission Input, Incl 17 - 20

1шт.

2

47376596

PISTON

Shuttle Clutch, Incl 21 - 23

2шт.

3

47369308

RING

28.3mm ID x 33mm OD x 3.25mm Thk

4шт.

4

47369309

WASHER

30.2mm ID x 48mm OD x 5.5mm Thk

2шт.

5

47372378

BELLEVILLE SPRING

30mm ID x 54mm OD x 2.8mm Thk, Incl 24

2шт.

6

87481373

NEEDLE BEARING CAGE

35mm ID x 47mm OD x 27mm Thk

2шт.

7

47381787

THRUST WASHER

30mm ID x 47mm OD x 2mm Thk

2шт.

8

87481374

BALL BEARING

30mm ID x 62mm OD x 16mm W

2шт.

9

87481370

GEAR

Forward, 34 Tooth

1шт.

10

87481371

GEAR

Reverse, 30 Tooth

1шт.

11

87481372

BUSHING

Roller Support, 30.2mm ID x 35mm OD x 27mm W

2шт.

12

47381790

SNAP RING

External, 106.3mm OD

4шт.

13

87481367

KIT

Clutch, Plates, Incl 25 - 26

2шт.

14

47369311

PLATE

Clutch Reaction, 71.5mm ID x 104.56mm OD x 5mm Thk

2шт.

15

47369307

CARRIER

Shuttle Clutch

1шт.

16

87481360

SEALING RING

Shuttle Piston, 25.6mm ID x 28mm OD x 1.8mm Thk

4шт.

17

47499509

SHAFT

Shuttle Clutch Input

1шт.

18

47369960

ORIFICE

4mm ID x 8mm OD x 1mm Thk

2шт.

19

47369925

SUPPORT

Shuttle Clutch Drum

1шт.

20

370003

SNAP RING,M30, External

1шт.

21

47369306

PISTON

Shuttle Clutch

1шт.

22

87481369

SEAL

Clutch Piston, 90.5mm ID x 95mm OD x 3.5mm Thk

1шт.

23

87481368

SEAL

Clutch Piston, 45mm ID x 49.5mm OD x 3.5mm Thk

1шт.

24

47372370

BELLEVILLE SPRING

30.4mm ID x 54mm OD x 2.8mm Thk

5шт.

25

47369313

CLUTCH PLATE

Steel, 71.5mm Id x 104.6mm OD x 2.1mm Thk

4шт.

26

47369312

CLUTCH PLATE

Friction, 64.06mm ID x 98mm OD x 2.2mm Thk

4шт.
