Запчасти Case IH FARMALL 45C (21.506.AA) - COMPLETE TRANSMISSION EXTERNAL PIPING (21) - TRANSMISSION

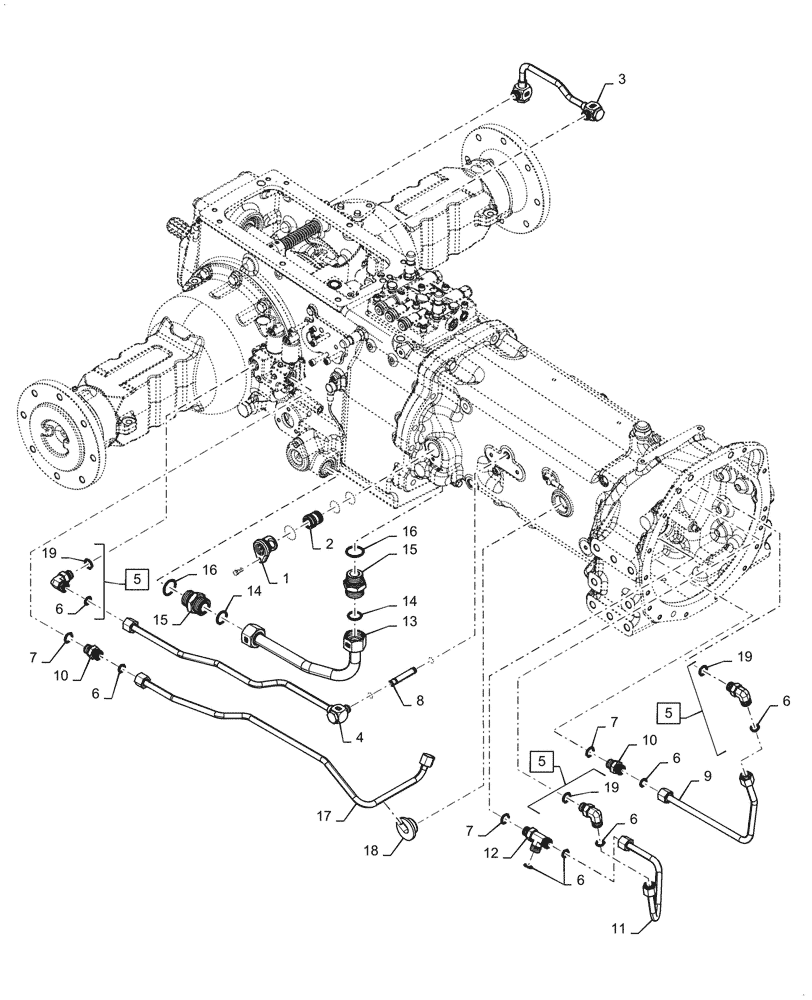

Схема запчастей Case IH FARMALL 45C - (21.506.AA) - COMPLETE TRANSMISSION EXTERNAL PIPING (21) - TRANSMISSION
5
2
14
18
19
19
17
14
15
16
3
7
5
6
6
13
12
6
6
15
7
4
10
6
11
5
10
19
16
9
7
8
6
1

Артикул

Название

Примечание

Количество

1

47483480

COVER

Pump, Suction

1шт.

2

87481338

SUCTION PIPE

Transmission

1шт.

3

87481383

PIPE

Differential Cross Over

1шт.

4

87481337

PIPE

PTO Lube

1шт.

5

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 6, 19

3шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

7шт.

7

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

6шт.

8

47484339

PIPE

Shuttle Clutch

1шт.

9

47414134

HYD TUBE

Shuttle Clutch Inlet

1шт.

10

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

11

47414102

HYD TUBE

Relief Valve Drain

1шт.

12

86579702

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

13

87481339

PIPE

Pump Suction

1шт.

14

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

15

47550899

HYD CONNECTOR

1-7/16" -12 ORFS x M33 x2 ORB

2шт.

16

84146002

O-RING,0.103" Thk x 1.174" ID, -123, Cl 8, 90 Duro

2шт.

17

87481335

PIPE

PTO Inlet

1шт.

18

47418068

GROMMET

37mm ID x 50mm OD x 20mm Thk

1шт.

19

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 19
