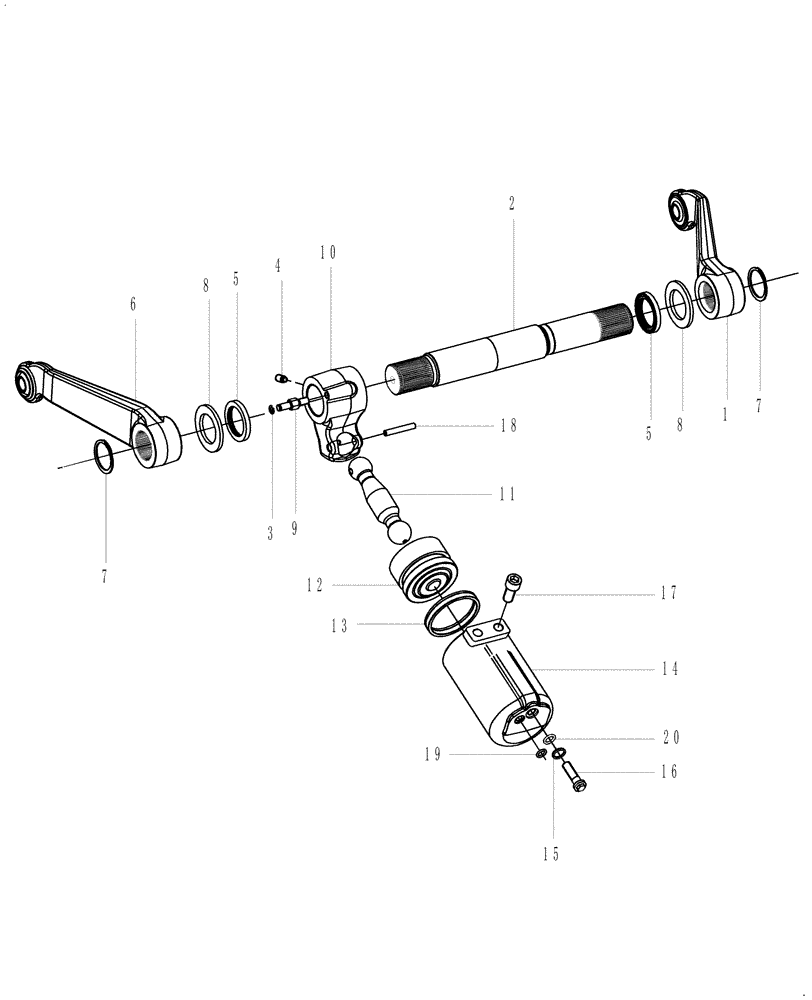

Запчасти Case IH FARMALL 45C (21.504.AK[08]) - LIFT CYLINDER (21) - TRANSMISSION

1

84188518

ARM

Left

1шт.

2

84188519

ROCKSHAFT

1шт.

3

11087776

CIRCLIP,Ext., M6, BLO

1шт.

4

NSS

NOT SOLD SEPARAT

Screw M10 x 20

1шт.

5

NSS

NOT SOLD SEPARAT

Incl 84188505 Seal Kit Refer to 21.504.AK (07)

2шт.

6

84188521

ARM

Right

1шт.

7

84188523

SNAP RING

2шт.

8

84188524

RING

2шт.

9

84188525

PIN

1шт.

10

84188527

CRANK

1шт.

11

84188528

LINK

1шт.

12

84188529

PISTON

1шт.

13

NSS

NOT SOLD SEPARAT

Incl in 84188505 Seal Kit Refer to 21.504.AK (07)

1шт.

14

84188530

CYLINDER

1шт.

15

NSS

NOT SOLD SEPARAT

Incl in 84188505 Seal Kit Refer to 21.504.AK (07)

1шт.

16

84188531

SCREW

Cylinder, M14 x 42

1шт.

17

14422321

HEX SOC SCREW,M12 x 45mm, Cl 8.8, Full Thd

2шт.

18

84188532

PIN

1шт.

19

84188533

SEALING RING,11.91mm ID x 2.62 Thk

1шт.

20

84188534

SEALING RING,15.54mm ID x 2.62 Thk

1шт.
