Запчасти Case IH FARMALL 45C (21.504.AK[05]) - FRONT HOUSING 40 HP (21) - TRANSMISSION

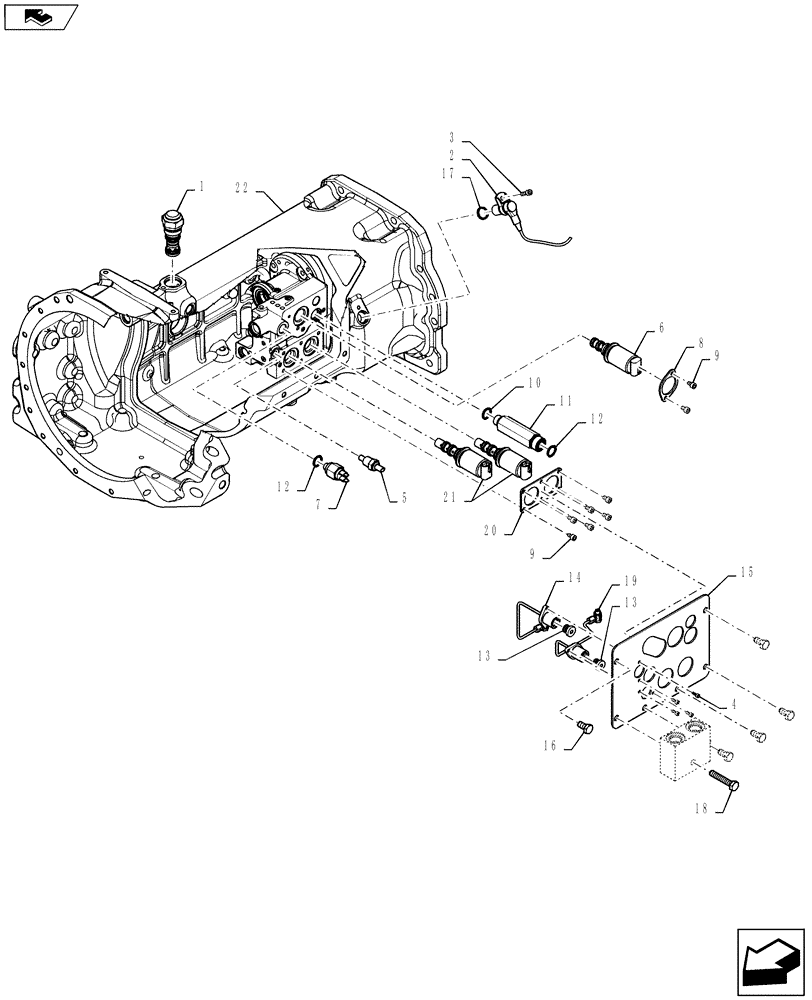

Схема запчастей Case IH FARMALL 45C - (21.504.AK[05]) - FRONT HOUSING 40 HP (21) - TRANSMISSION
12
7
13
16
12
6
18
3
14
8
20
2
home
9
17
15
21
13
11
5
10
4
22
1
9
19

Артикул

Название

Примечание

Количество

1

GRT3347423

VALVE PRESSURE RELIE

18BAR

1шт.

2

84169162

SENSOR

Sensor, Hall Effect

1шт.

3

GRT71970

BOLT

M6 x 14 CL 8.8

1шт.

4

GRT71736

SCREW

M4 x 10 CL 8.8

6шт.

5

82028133

SENSOR,3/8"-18

1шт.

6

87416918

SOLENOID

Dump Valve

1шт.

7

87384756

SWITCH ASSY

Pressure Switch

1шт.

8

NSS

NOT SOLD SEPARAT

Incl with #6

1шт.

9

GRT70737

SCREW

M6 x 10 CL 8.8

8шт.

10

GRT3347743

BANJO FITTING

1шт.

11

GRT3347753

ADAPTER

Shuttle Clutch Washing Pipe, Serial Range: -`0

1шт.

Metallic Sealing Ring At The End Of Tube. Parker # DKA08CF-Steel

1шт.

12

GRT70460

O-RING

1.78 x 15.6

2шт.

13

GRT3474263

PLUG

Threaded With O-Ring

2шт.

14

GRT3465543

TUBE

Diagnostic Forward

1шт.

15

47361909

SHIELD

Shuttle Clutch Hydraulic Block Shield

1шт.

16

GRT70011

BOLT

M10 x 20 CL 8.8

5шт.

17

47136259

O-RING,3mm Thk x 17.2mm ID, 72 Duro

1шт.

18

GRT71387

BOLT

M10 x 55 CL 8.8

1шт.

19

GRT3465553

TUBE

Diagnostic Reverse

1шт.

20

NSS

NOT SOLD SEPARAT

Fixing Plate Valve, Incl with #21

1шт.

21

87739558

SOLENOID VALVE,14W

Proportional Valve

2шт.

21

87739558R

REMAN-SOLENOID

BOOMER 3040 w/ Easydrive/CVT Trans. w/Cab

2шт.

21

87739558C

CORE-SOLENOID

Return Number

2шт.

22

GRT3VT03553

HOUSING

Front Housing Assy (40 hp)

1шт.

Выбрано товаров: 25
