Запчасти Case IH FARMALL 45C (21.504.AK[01]) - REAR HOUSING ASSEMBLY (21) - TRANSMISSION

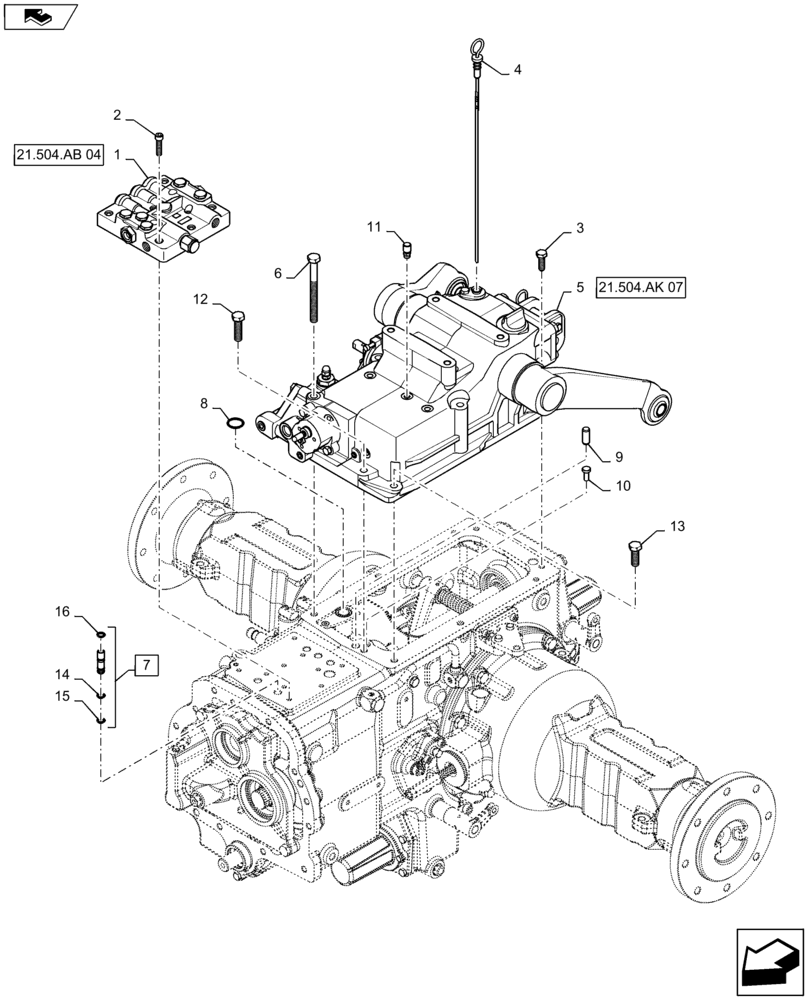

Схема запчастей Case IH FARMALL 45C - (21.504.AK[01]) - REAR HOUSING ASSEMBLY (21) - TRANSMISSION
8
7
12
16
home
11
1
13
14
5
3
2
9
4
21.504.ak 07
10
15
21.504.ab 04
6

Артикул

Название

Примечание

Количество

1

47361883

CONTROL VALVE

Variator Hydraulic Control Unit

1шт.

2

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

10шт.

3

GRT70407

BOLT

M10 x 1.36 x 30 CL 8.8

4шт.

4

GRT3478313

DIPSTICK

Oil

1шт.

5

GRT3458773

COVER

HPL Lift

1шт.

6

GRT72586

BOLT

M12 x 1.25 x 130 CL 8.8

3шт.

7

47494420

PIPE

Variator Hydraulic Control Unit Inlet Pipe

1шт.

8

GRT72314

O-RING,0.103" Thk x 0.75" ID, -116, Cl 7, 75 Duro

1шт.

9

NS

NOT SERVICED

Dowel

1шт.

10

NS

NOT SERVICED

Anti-Rotation Disc Stopping Pin

1шт.

11

GRT70052

BREATHER

Breather

1шт.

12

GRT72598

BOLT

M12 x 1.25 x 45 CL 8.8

1шт.

13

GRT72591

BOLT

M12 x 1.25 x 35 CL 8.8

1шт.

14

GRT72691

RING

Anti-Extrusion

1шт.

15

GRT70461

O-RING

Seal, 1.78 x 9.25

2шт.

16

GRT72577

O-RING,9.91mm ID x 12.61mm OD x 1.14mm Thk

1шт.

Выбрано товаров: 16
