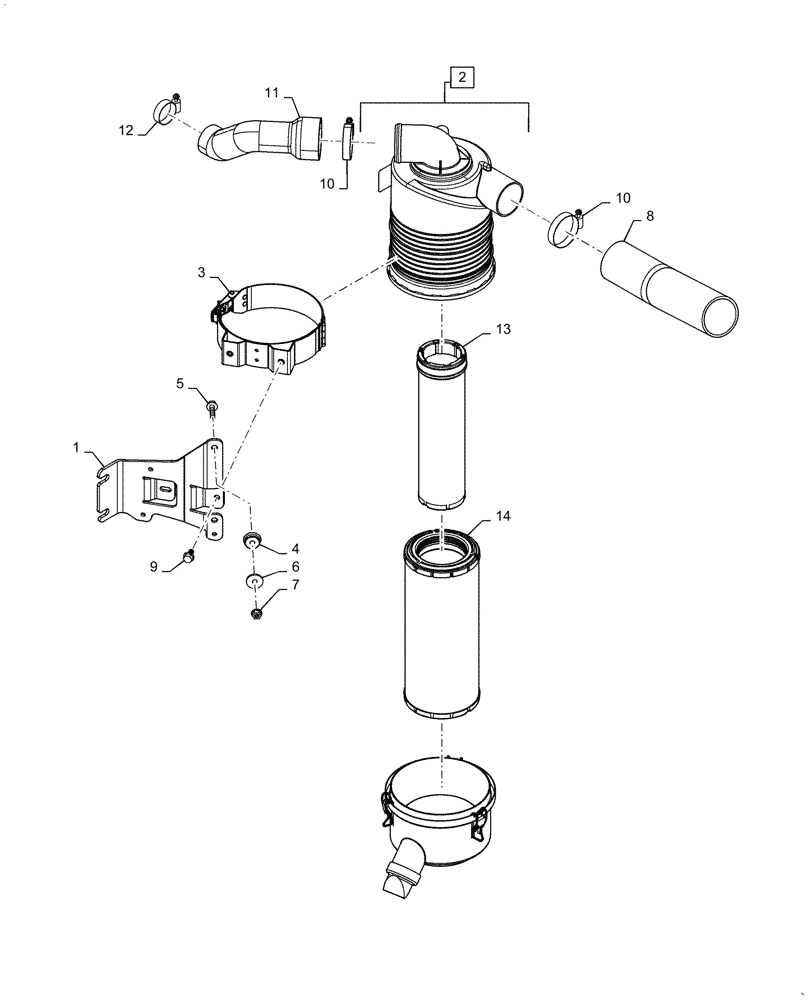

Запчасти Case IH FARMALL 45C (10.202.AK) - AIR INTAKE (10) - ENGINE

1

47811230

BRACKET

Air Cleaner Support

1шт.

2

47801187

AIR CLEANER

Engine, Incl 13 - 14

1шт.

3

47818017

SUPPORT

Air Cleaner

1шт.

4

86400620

ISOLATOR

Rubber

2шт.

5

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

6

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

2шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

47522872

AIR HOSE

Intake Inlet

1шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

10

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

2шт.

11

47608356

AIR HOSE

Intake Outlet, Turbo

1шт.

12

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

13

87682991

AIR FILTER,11.74" L

Primary

1шт.

14

47794488

ELEMENT

Secondary

1шт.
