(90.120.AD) - SEAT, ROPS

Запчасти Case IH FARMALL 45C (90.120.AD) - SEAT, ROPS (90) - PLATFORM, CAB, BODYWORK AND DECALS

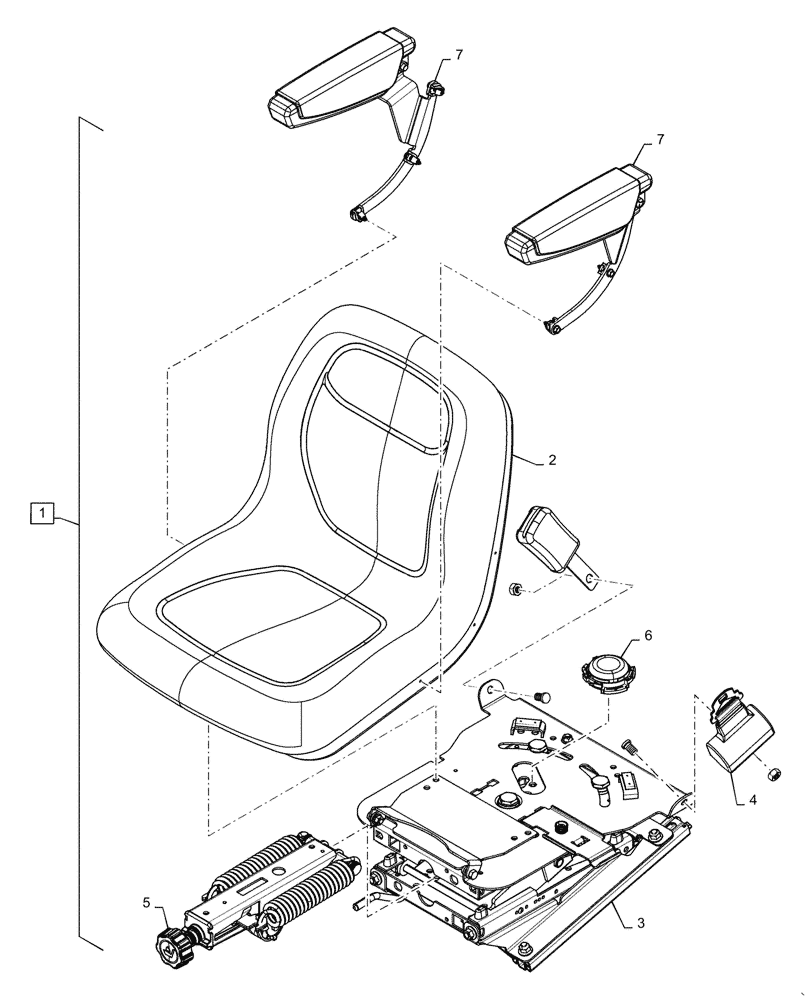

Схема запчастей Case IH FARMALL 45C - (90.120.AD) - SEAT, ROPS (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
4
7
7
2
6
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47668586

SEAT BACK

Incl 2 - 6

1шт.

2

47678365

SEAT BACK

Cushion

1шт.

3

47678363

SPRING

Seat Suspension

1шт.

4

47598679

SEAT BELT

3шт.

5

47678366

SLIDER

Seat Adjuster

1шт.

6

47598660

PRESSURE SWITCH

Operators Presence

1шт.

7

47541372

ARMREST

Operators Seat

1шт.
