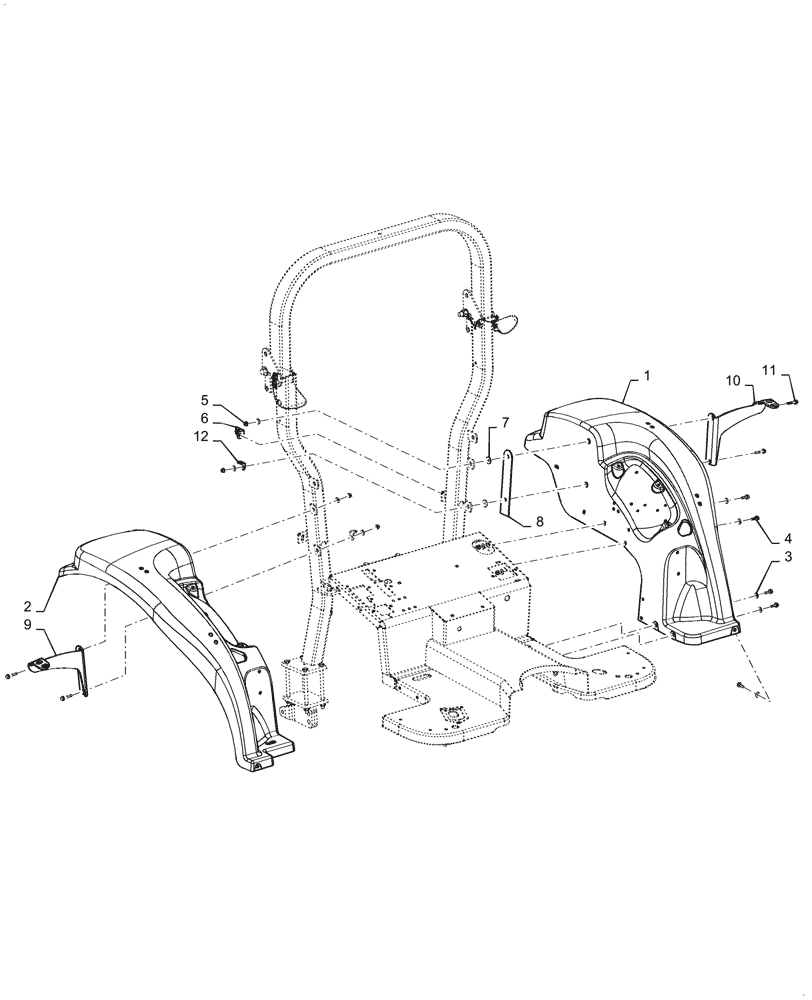

Запчасти Case IH FARMALL 45C (90.116.AC[01]) - FENDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84194146

FENDER

LH

1шт.

2

47839093

FENDER

RH

1шт.

3

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

18шт.

4

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

12шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

6

87301449

BRACKET

Fender Support

2шт.

7

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

6шт.

8

87474546

BRACKET

Fender Support

2шт.

9

84331639

BRACKET, SUPPORTING

Fender, RH

1шт.

10

84331640

BRACKET, SUPPORTING

Fender, LH

1шт.

11

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

4шт.

12

47914443

BRACKET

Tail Light Harness

2шт.
