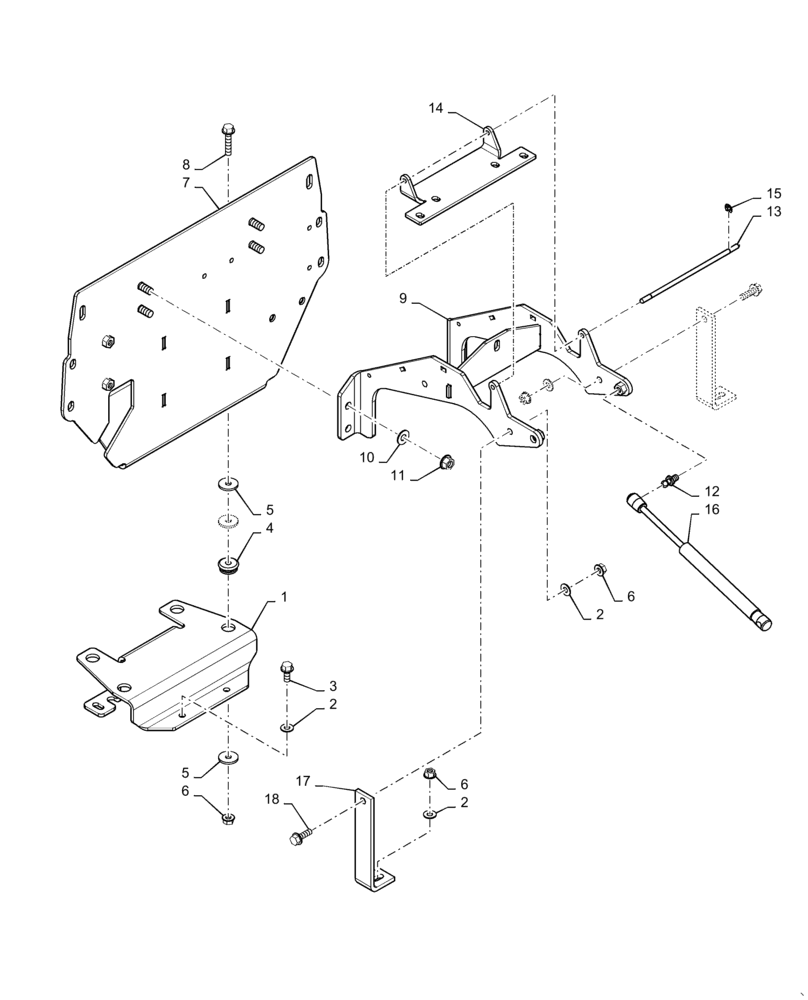

Запчасти Case IH FARMALL 45C (90.100.AJ) - FIREWALL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47633203

BRACKET

Firewall Support

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

3

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

86400620

ISOLATOR

Rubber, 8.12mm ID x 19.8mm OD x 16mm Thk

1шт.

5

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

12шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

7

47792206

BRACKET

Firewall

1шт.

8

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

4шт.

9

47792204

BRACKET

Hood Support

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

11

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

12

83952214

BALL STUD,M8 x 29.5mm OAL

2шт.

13

86400135

HINGE

Front Hood

1шт.

14

87300936

BRACKET

Rear Hinge

1шт.

15

40937

SNAP RING,#25, .207" Dia, E-Type

2шт.

16

86543899

GAS STRUT

Front Hood

2шт.

17

47706999

BRACKET

Hood Support

2шт.

18

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.
