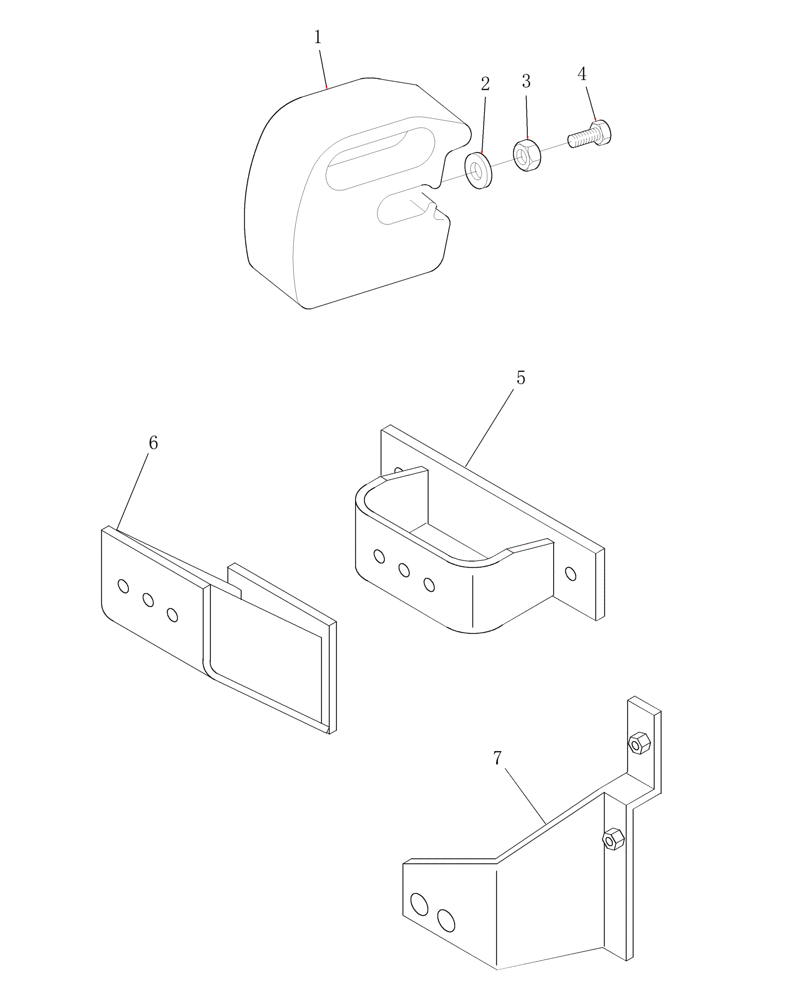

Запчасти Case IH FARMALL 45C (88.040.AA[01]) - DIA KIT, FRONT END WHEEL WEIGHTS, WEIGHT CARRIER & WEIGHT ADAPTER BRACKET SUPERSTEER (88) - ACCESSORIES

1

710215016

WEIGHT

Front End, 60Lbs., Serial Range: -`0

1шт.

Max Of 2 With All Axle/Tire Combinations Except SuperSteer Axle Equipped With Ag Tires

1шт.

1

718215036

WEIGHT

Front End, 100 Lbs., Serial Range: -`0

1шт.

Max Of 2 With All Axle/Tire Combinations Including SuperSteer Axle,NH-NA

1шт.

2

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

3

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

4

280508

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

1шт.

5

718233006

KIT

Weight, Will Hold Up To (5) 60lb. weights (710215013) or (5) 100 lb. weights (718215036), Serial Range: -`0

1шт.

Use (6) 412398 Capscrew (6) 140020 Washers & (12) 392530 Nuts when installing 719233006 Adapter for SuperSteer

1шт.

6

719233056

WEIGHT PACKAGE

, Serial Range: -`0

1шт.

7

86403115

BRACKET

Loader Tube Stabilizer Bracket (required to install single lever 2-spool remote valve with front loader.), Serial Range: -`0

1шт.

Attaching Hardware: (2) 9824271 Bolts & (2) 86532860 Spacers

1шт.
