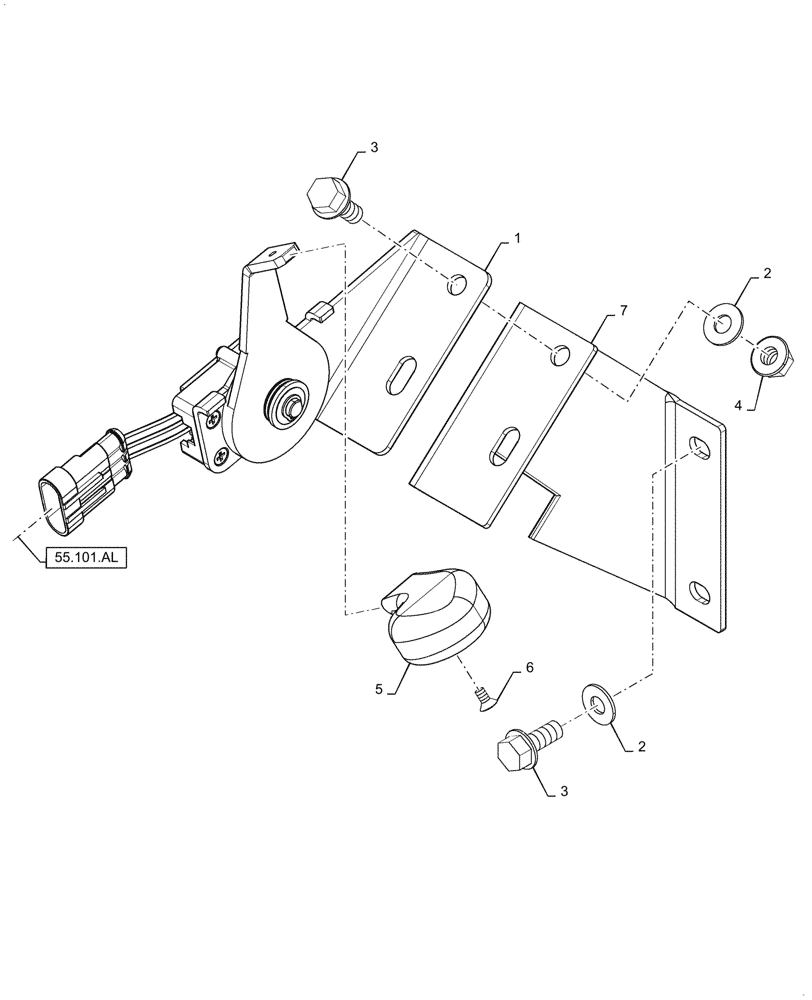

Запчасти Case IH FARMALL 45C (55.525.AL) - HAND THROTTLE ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

47500412

THROTTLE

Hand Adjustment

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

3

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

5

9841607

KNOB

Hand Throttle Handle

1шт.

6

9844207

SCREW,Phillips Drive, Oval HD, M4 x 8mm, Cl 4.8

1шт.

7

47633264

BRACKET

Rops Throttle Handle Mount

1шт.
