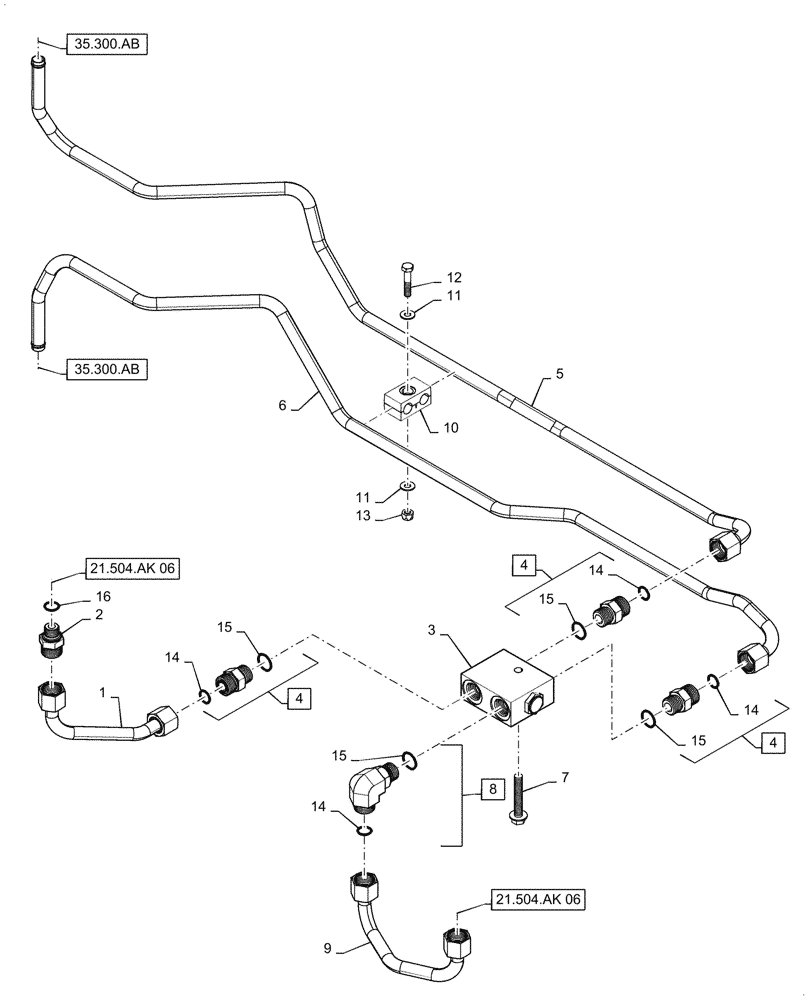

Запчасти Case IH FARMALL 45C (35.300.BC) - HYDRAULIC SYSTEM, OIL COOLER (35) - HYDRAULIC SYSTEMS

1

87595719

HYD TUBE,14.102 mm ID x 15.88 mm OD

Oil Cooler Bypass Valve Inlet

1шт.

2

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

1шт.

3

87389351

VALVE

Oil Cooler Bypass

1шт.

4

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

Incl 14 - 15

3шт.

5

47632155

HYD TUBE

Oil Cooler Supply Outlet

1шт.

6

47632153

HYD TUBE

Oil Cooler Supply Inlet

1шт.

7

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

1шт.

8

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

Incl 14, 16

1шт.

9

87578949

HYD TUBE,14.1 mm ID x 15.88 mm OD x 161.8, 55 mm L

Oil Cooler Bypass Valve Outlet

1шт.

10

8468538

CLAMP

Hydraulic Tube, 2 Hole, 15mm ID

1шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

12

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

13

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

14

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

15

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

16

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
