(35.300.AN[02]) - HYDRAULIC SUCTION FILTER & TUBING

Запчасти Case IH FARMALL 45C (35.300.AN[02]) - HYDRAULIC SUCTION FILTER & TUBING (35) - HYDRAULIC SYSTEMS

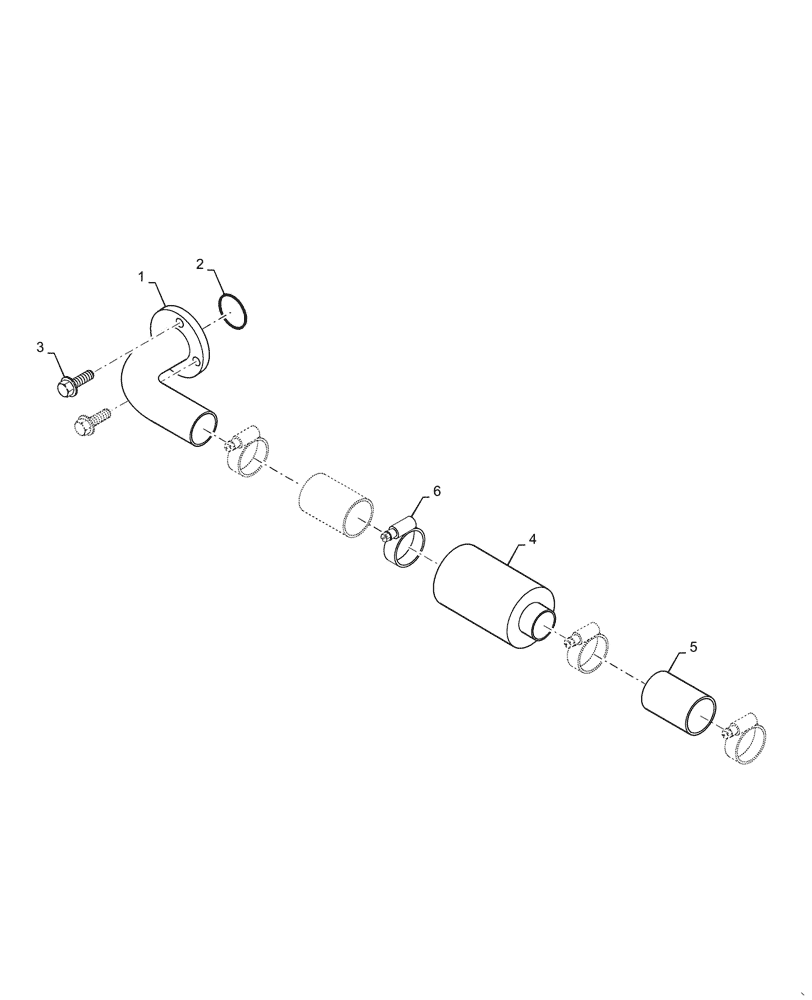

Схема запчастей Case IH FARMALL 45C - (35.300.AN[02]) - HYDRAULIC SUCTION FILTER & TUBING (35) - HYDRAULIC SYSTEMS
3
2
6
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47753566

HYD TUBE

Transmission To Inline Strainer

1шт.

2

272470

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

3

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

4

47755594

HYDRAULIC OIL FILTER

Inline Strainer, 160 Micron

1шт.

5

47755665

HYDRAULIC HOSE

Suction, 38.1mm ID x 95mm L

2шт.

6

86637709

HOSE CLAMP,44mm - 67mm

4шт.

Выбрано товаров: 6
