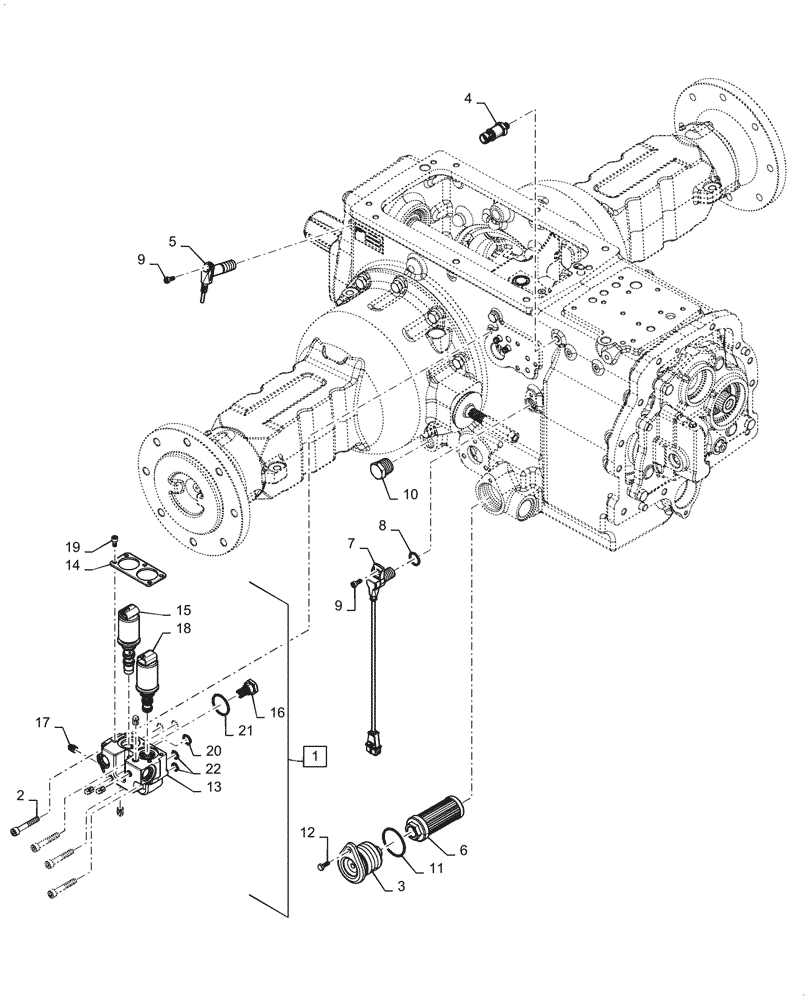

Запчасти Case IH FARMALL 45C (21.504.AK[02]) - REAR HOUSING ASSEMBLY (21) - TRANSMISSION

1

47480377

HYDRAULIC MANIFOLD

Rear PTO, Incl 13 - 22

1шт.

2

14306921

HEX SOC SCREW,M8 x 50mm, Cl 8.8

4шт.

3

47395698

COVER

Hydraulic Oil Filter, Transmission

1шт.

4

84407725

PRESSURE SWITCH

Hydraulic Oil, Transmission

1шт.

5

87564761

SENSOR

PTO Speed

1шт.

6

87481356

FILTER

Transmission, Suction

1шт.

7

84169162

SENSOR

Transmission Speed

1шт.

8

129979

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

9

47481245

SCREW

Hex Socket, M6 x 14mm, Cl. 8.8

2шт.

10

84157006

PLUG

Hex Head Pipe, 3/4 - 14 NPTF

1шт.

11

14459181

O-RING,45.69mm ID x 2.62" Width

1шт.

12

613-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

13

47395664

HYDRAULIC MANIFOLD

Rear PTO

1шт.

14

47395666

PLATE

Valve Hold Down

1шт.

15

87739558

SOLENOID VALVE,14W

PTO Lube

1шт.

16

87481435

VALVE

Lube

1шт.

17

14323911

PLUG

Pipe, M10 x 1.25 x 14mmL

5шт.

18

87416918

SOLENOID

PTO Inlet

1шт.

19

14305120

SCREW,Hex Soc Hd, M6 x 12, 8.8

5шт.

20

14453181

O-RING,0.489" ID x 0.07" Width

3шт.

21

87481347

O-RING

29.775mm ID x 38.1mm OD x 1.5875mm Thk

1шт.

22

638-52095

O-RING,9.5mm ID x 1.8mm Width

2шт.
