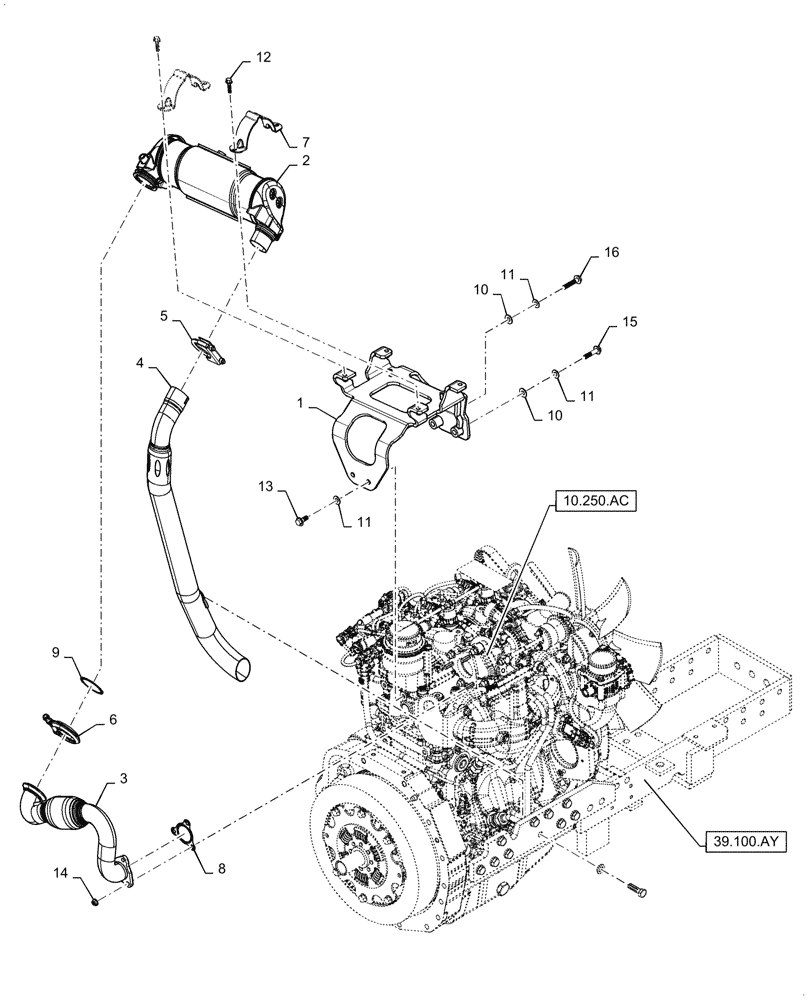

Запчасти Case IH FARMALL 45C (10.500.AO) - EXHAUST SYSTEM (10) - ENGINE

1

47774575

BRACKET

Exhaust Mount

1шт.

2

47474586

MUFFLER

Particulate Catalyst

1шт.

3

47717145

PIPE

Exhaust, Muffler To Turbo

1шт.

4

47812266

EXHAUST SYSTEM PIPE

Outlet

1шт.

5

83910871

CLAMP,57mm ID, Muffler

1шт.

6

47615255

CLAMP

Turbo, Collar, 80mm ID

1шт.

7

47615264

CLAMP

Muffler Strap

2шт.

8

47615268

GASKET

Exhaust Tube To Turbo

1шт.

9

47615289

GASKET

Exhaust Pipe To Muffler

1шт.

10

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

2шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

12

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

13

9804262

BOLT,M10 x 39.2mm, Cl 8.8

2шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

15

86981706

Flange, M10 x 55mm, Cl 10.9

BOLT

1шт.

16

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

1шт.
