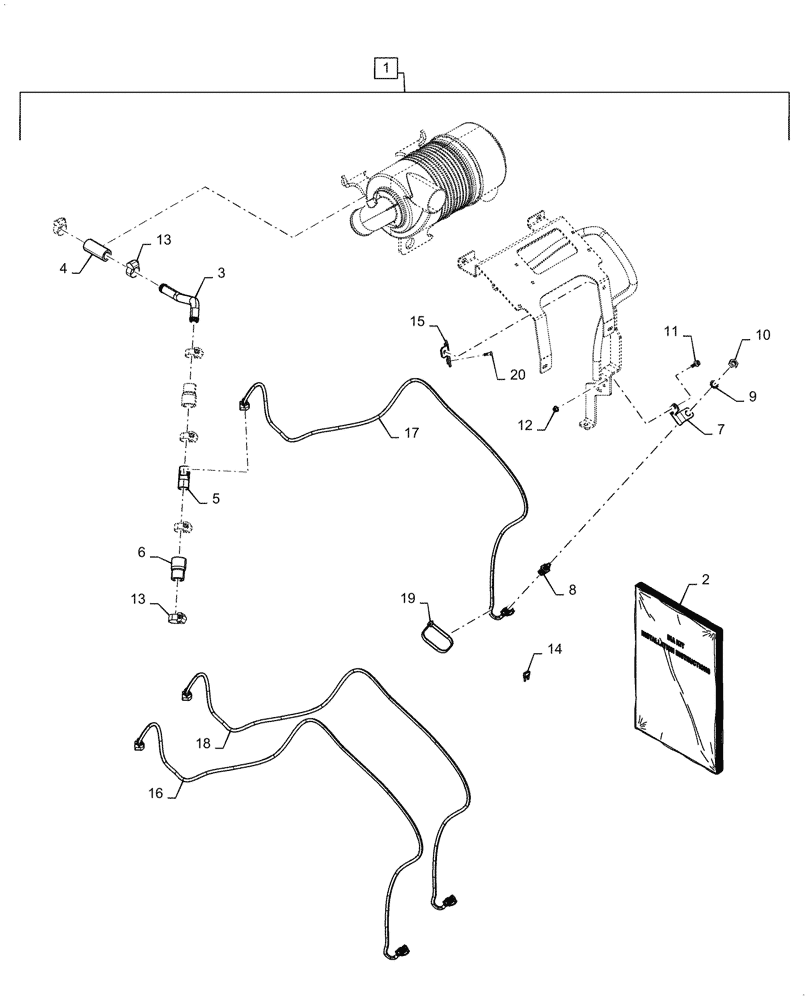

Запчасти Case IH FARMALL 45C (10.204.AK) - AIR INTAKE, HEATER, CVT (10) - ENGINE

1

47919122

Kit, Incl 2 - 20

HEATER

1шт.

2

47943741

INSTRUCTION

Installation

1шт.

3

47924123

CCV Heater

PIPE

1шт.

4

47608357

AIR HOSE

Intake

1шт.

5

48110095

CCV

HEATER

1шт.

6

47926221

INTAKE AIR HOSE

2шт.

7

47924130

Temperature Sensor

BRACKET

1шт.

8

84539252

SENSOR

Air Temperature

1шт.

9

83925303

LOCK WASHER,12.5mm ID x 20.5mm OD x 1mm Thk

1шт.

10

399555

THIN NUT,Thin, M12 x 1.5, Cl 04

1шт.

11

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

12

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

13

58948

CLAMP

6шт.

14

84127704

FUSE,20A, Mini, Yellow

1шт.

15

47924091

BRACKET

Fuse Weldment

1шт.

16

47949212

Main

WIRE HARNESS

1шт.

17

47949215

Panel

WIRE HARNESS

1шт.

18

47949217

Chassis

WIRE HARNESS

1шт.

19

263117

CABLE TIE,292.1mm L, Nylon, Black

15шт.

20

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

1шт.
