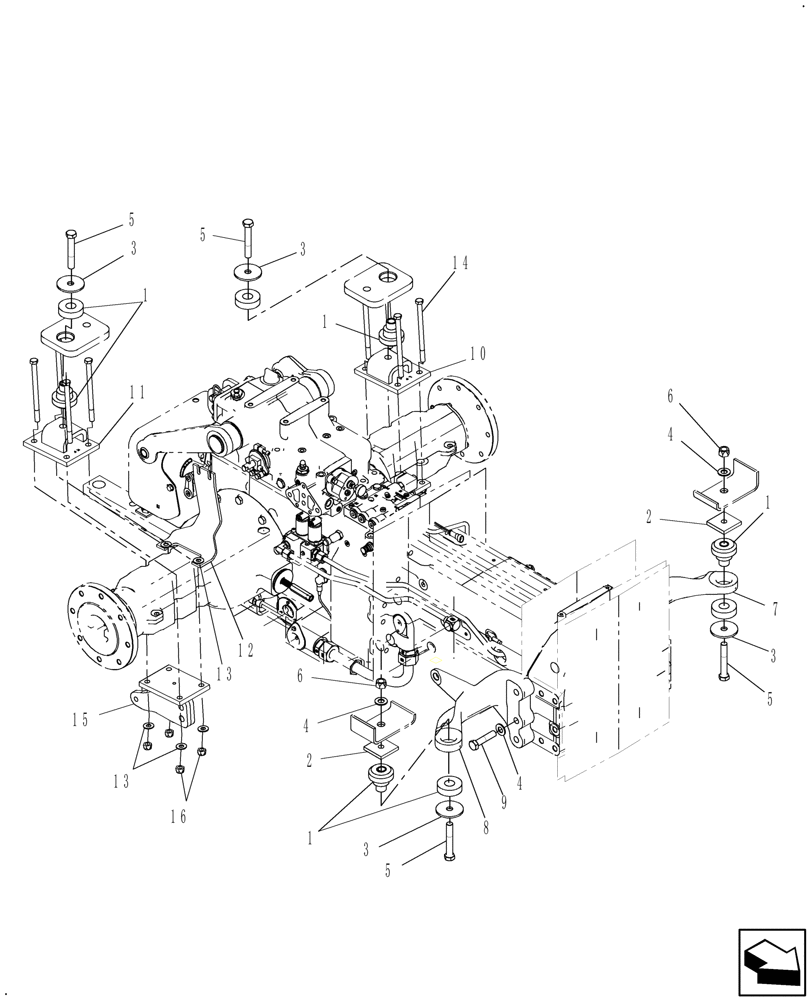

Запчасти Case IH FARMALL 45C (90.150.AB) - CAB MOUNT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87562813

RUBBER MOUNTING

Isolator

4шт.

2

84187152

PLATE

Isolator

2шт.

3

86405029

WASHER,16.7mm ID x 71.4mm OD x 4.8mm Thk

Washer, Rebound

4шт.

4

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

5

84036080

BOLT,Hex, M16 x 110mm, Cl 10.9

4шт.

6

86512555

NUT,M16 x 2, Cl 10

2шт.

7

87356858

MOUNTING PARTS

Front LH

1шт.

8

87356856

MOUNTING PARTS

Front RH

1шт.

9

87015545

BOLT,Hex, M16 x 70mm, Cl 10.9

2шт.

10

84187118

PLATE

LH Rear

1шт.

11

84187127

PLATE

RH Rear

1шт.

12

84156719

MOUNTING PLATE

HPL Lever Mounting

1шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

14

87027056

BOLT

8шт.

15

87719465

BRACKET

Stabilizer

2шт.

16

100038

NUT,M12 x 1.75, Cl 8

8шт.
