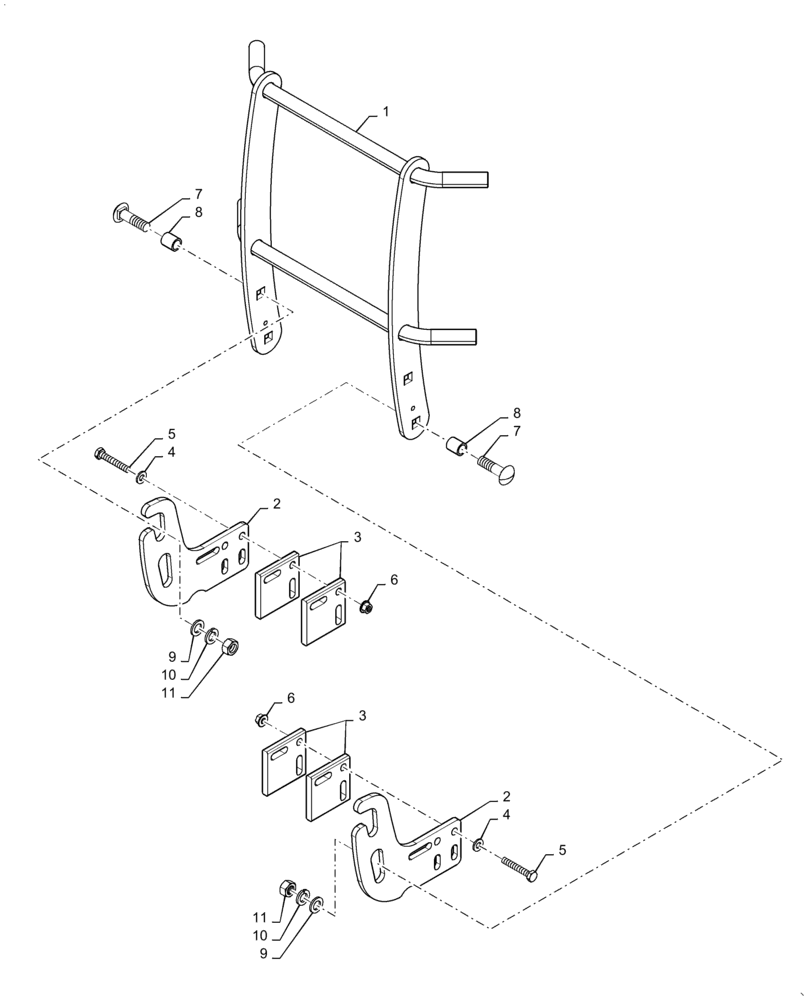

Запчасти Case IH FARMALL 45C (90.102.AN[01]) - GRILLE GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47503505

GUARD

Grill

1шт.

2

47486528

BRACKET

Grill Guard Mounting

2шт.

3

47503510

SPACER

Grill Guard Mounting

4шт.

4

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

6шт.

5

15214921

BOLT,Hex, M10 x 1.5 x 65mm, Cl 8.8, Full Thd

6шт.

6

9804278

FLANGE NUT,M10 x 1.5, Cl 8

6шт.

7

120046

CARRIAGE BOLT,M16 x 60mm, Cl 8.8

4шт.

8

87013871

SPACER,7/8" Tube x 1"

4шт.

9

10520201

WASHER,16.4mm ID x 28mm OD x 3mm Thk

4шт.

10

10572174

LOCK WASHER,Helical Spring, 16.20mm ID x 27.40mm OD x 3.50mm, C72, DAC

4шт.

11

392530

NUT,M16, Cl 10

4шт.
