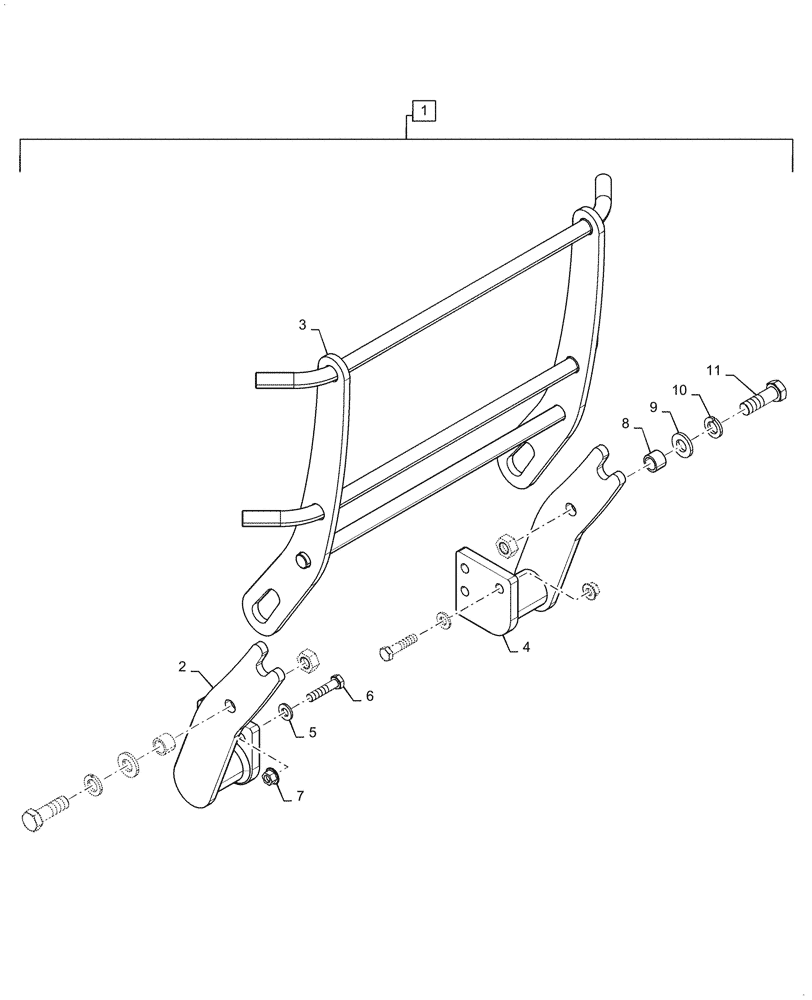

Запчасти Case IH FARMALL 45C (88.090.AA[05]) - DIA KIT, GRILLE GUARD KIT (88) - ACCESSORIES

1

47850165

DIA KIT, TRACTOR

Incl 2 - 11

1шт.

2

47850168

BRACKET

RH, Grille Guard

1шт.

3

47850166

INSERT

Grille Guard

1шт.

4

47850167

BRACKET

LH, Grille Guard

1шт.

5

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

6шт.

6

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

6шт.

7

9804278

FLANGE NUT,M10 x 1.5, Cl 8

6шт.

8

47745723

SPACER

2шт.

9

13580101

WASHER,16.4mm ID x 32mm OD x 4mm Thk

2шт.

10

10572174

LOCK WASHER,Helical Spring, 16.20mm ID x 27.40mm OD x 3.50mm, C72, DAC

2шт.

11

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

2шт.
