Запчасти Case IH FARMALL 45C (88.035.AA[02]) - DIA KIT, REAR REMOTE #2 COMPLETING KIT (88) - ACCESSORIES

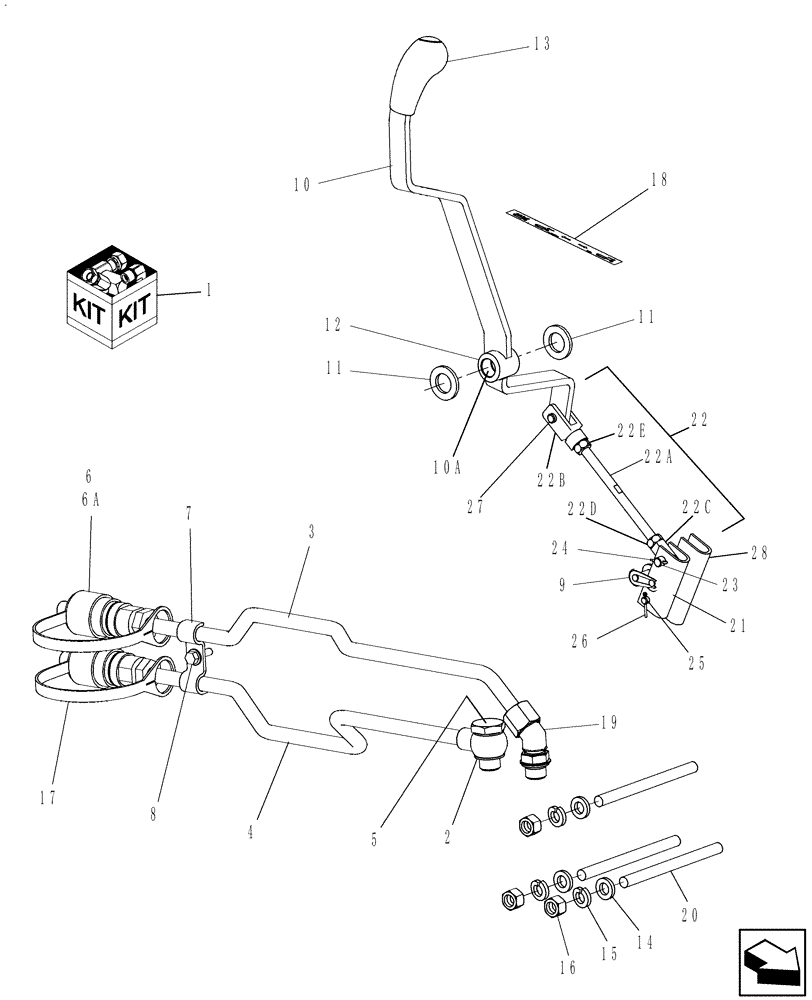

Схема запчастей Case IH FARMALL 45C - (88.035.AA[02]) - DIA KIT, REAR REMOTE #2 COMPLETING KIT (88) - ACCESSORIES
18
3
11
10a
22d
5
16
1
28
10
26
19
11
12
23
4
22
24
22a
17
15
14
6
21
27
8
22b
22c
7
22e
6a
20
2
13
9
25

Артикул

Название

Примечание

Количество

1

719935036

REMOTE VALVE KIT

#2 Completing Includes: Ref. 2-27

1шт.

2

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2шт.

3

87728526

HYD TUBE

Raise

1шт.

4

87728527

HYD TUBE

Lower

1шт.

5

5100984

BANJO BOLT,M18 x 1.5, 34mm L

1шт.

6

256231

COUPLING, QUICK, FEM

1/2-14

2шт.

6a

86528546

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

1шт.

7

86524859

CLAMP

Tube

1шт.

8

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

9

5116896

LINK,19.05mm Pitch

1шт.

10

84143064

LEVER

Remote Valve Control Includes: Ref. 11A

1шт.

10a

86524680

BUSHING

2шт.

11

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

12

505291

LOCKING RING,#62, .480" Dia, E-Type

1шт.

13

87636392

KNOB

Blue

1шт.

14

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

3шт.

15

10569471

LOCK WASHER,Lock, 3/8"

3шт.

16

5116857

NUT,3/8" - 24

3шт.

17

5179577

PLUG,24mm, Blu

Dust, 1/2

2шт.

18

84163111

DECAL

Remote

1шт.

19

87327028

45 ELBOW

1шт.

20

5150104

STUD,3/8" - 24 x 5"

3шт.

21

84158744

BAR

Bar, Connection

1шт.

22

84158752

ROD

Rod Includes: Ref. 22A-22E

1шт.

22a

NSS

NOT SOLD SEPARAT

Threaded, M8 x 1.25 x 150 Long

1шт.

22b

84158758

CLEVIS

M8 x 1.25 8mm Pin Dia x 42mm long

1шт.

22c

84158759

CLEVIS

Eye, M8 x 1.25 8mm Pin Dia

1шт.

22d

16100815

NUT,M8 x 1.25, Cl 8

M8

1шт.

22e

825-12408

NUT,M8 x 1.25, Cl 10, LH

M8

1шт.

23

80374834

CLEVIS PIN

1шт.

24

86639115

COTTER PIN,M2 x 12

1шт.

25

87597960

CLEVIS PIN,6.35mm OD x 19.56mm L

Pin, Clevis .250x.770

1шт.

26

86523849

COTTER PIN,1/16" x 3/4"

1шт.

27

87602942

CLEVIS PIN,8 x 16mm Short ZND

Pin, Clevis 8x16

1шт.

28

84158743

BAR

Connection, Aux Valve #1

1шт.

Выбрано товаров: 35
