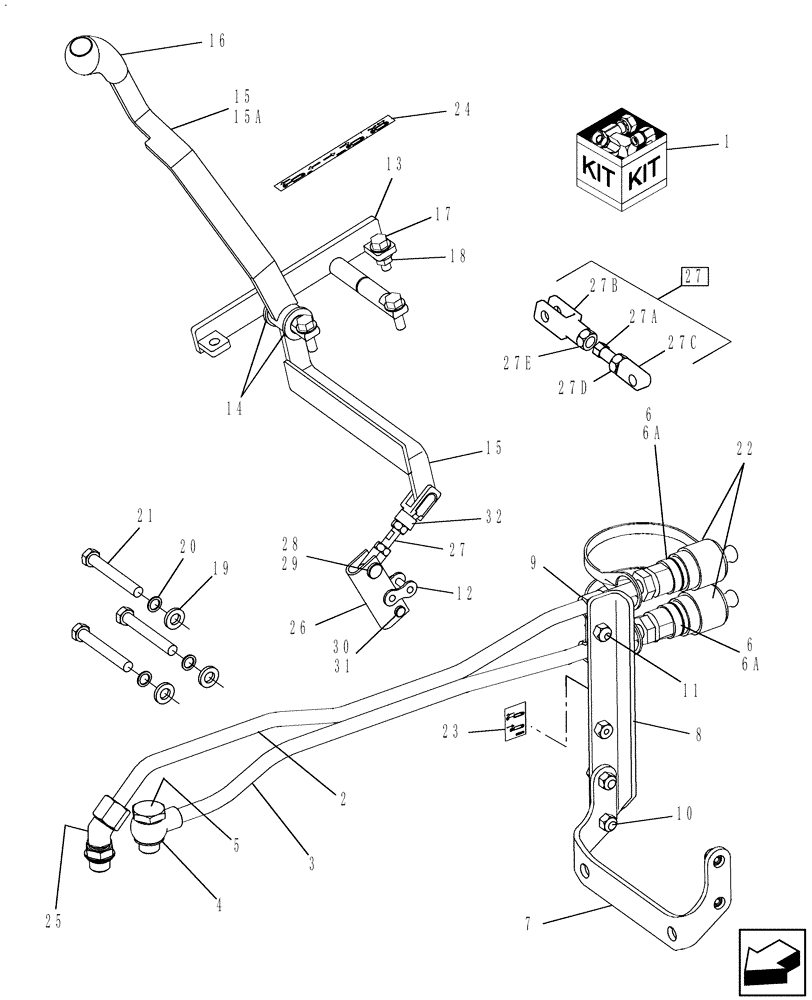

Запчасти Case IH FARMALL 45C (88.035.AA[01]) - DIA KIT, REAR REMOTE #1 COMPLETING KIT (88) - ACCESSORIES

1

719933036

REMOTE VALVE KIT

#1 Completing Includes: Ref. 2-32

1шт.

2

87728522

HYD TUBE

Raise

1шт.

3

87728523

HYD TUBE

Lower

1шт.

4

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2шт.

5

5100984

BANJO BOLT,M18 x 1.5, 34mm L

1шт.

6

256231

COUPLING, QUICK, FEM

1/2-14

2шт.

6a

86528546

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

1шт.

7

87520097

BRACKET

Remote Valve Coupler

1шт.

8

87520099

BRACKET

Remote Valve 1 & 2

1шт.

9

86524859

CLAMP

Tube

1шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

12

5116896

LINK,19.05mm Pitch

1шт.

13

87552579

BRACKET

Remote Valve Levers

1шт.

14

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

15

84143074

LEVER

#1 Remote Valve Includes: Ref. 15A

1шт.

15a

86524680

BUSHING

2шт.

16

87636394

KNOB

Green

1шт.

17

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

18

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

19

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

3шт.

20

10569471

LOCK WASHER,Lock, 3/8"

3шт.

21

280458

BOLT,Hex, 3/8" - 24 x 2 3/4", Gr 8

3шт.

22

5179576

PLUG,24mm, Green

Dust, 1/2

2шт.

23

87300013

DECAL

Hydraulic Coupler

2шт.

24

87638320

DECAL

Remote

1шт.

25

87327028

45 ELBOW

1шт.

26

84158743

BAR

Bar, Connection

1шт.

27

84158746

ROD

Includes: Ref. 27A-27E

1шт.

27a

NSS

NOT SOLD SEPARAT

Threaded, M8 x 1.25 x 150 Long

1шт.

27b

84158758

CLEVIS

M8 x 1.25 8mm Pin Dia x 42mm long

1шт.

27c

84158759

CLEVIS

Eye, M8 x 1.25 8mm Pin Dia

1шт.

27d

16100815

NUT,M8 x 1.25, Cl 8

M8

1шт.

27e

825-12408

NUT,M8 x 1.25, Cl 10, LH

M8

1шт.

28

80374834

CLEVIS PIN

1шт.

29

86639115

COTTER PIN,M2 x 12

1шт.

30

87597960

CLEVIS PIN,6.35mm OD x 19.56mm L

Pin, Clevis .250x.770

1шт.

31

86523849

COTTER PIN,1/16" x 3/4"

1шт.

32

87602942

CLEVIS PIN,8 x 16mm Short ZND

Pin, Clevis 8x16

1шт.
