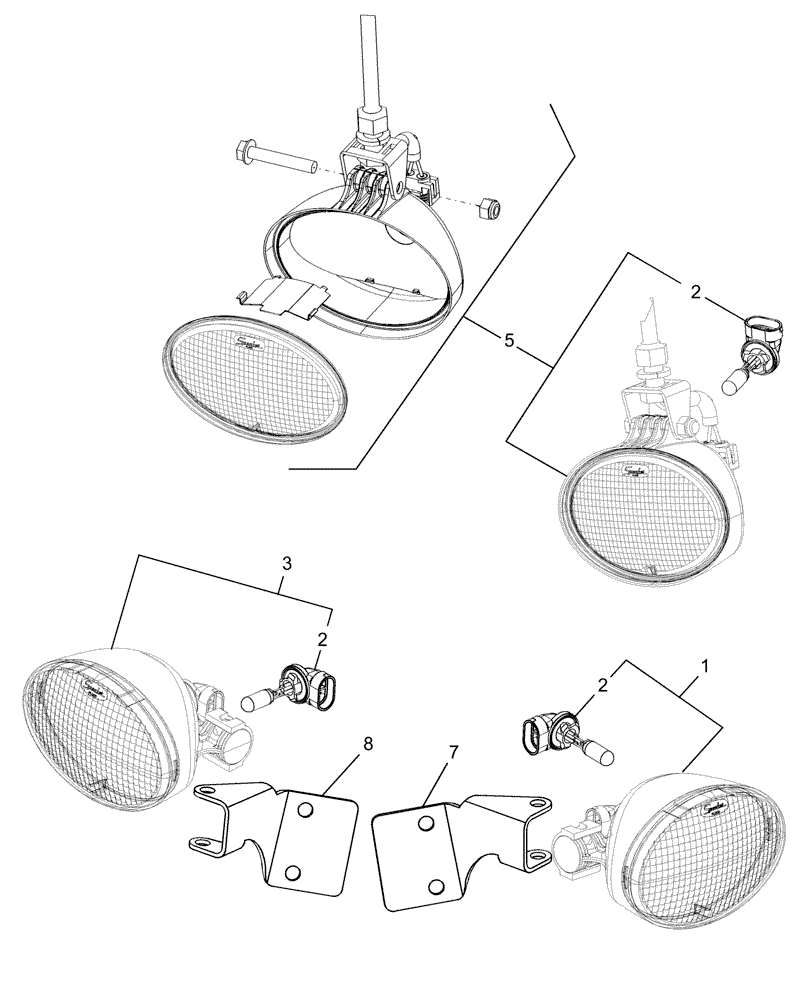

Запчасти Case IH FARMALL 45C (55.404.AQ[02]) - WORK LIGHT (55) - ELECTRICAL SYSTEMS

1

87388513

LH HEADLAMP

Front Left Incl 2

1шт.

2

139119A1

BULB,#886, 12V, 50W

1шт.

3

87388514

RH HEADLAMP

Front Right Incl 4

1шт.

4

139119A1

BULB,#886, 12V, 50W

1шт.

5

87388515

RH HEADLAMP

Rear

2шт.

6

139119A1

BULB,#886, 12V, 50W

2шт.

7

87541133

BRACKET

Front Worklight, LH

1шт.

8

87541134

BRACKET

Front Worklight, RH

1шт.

10

86528579

NUT,M8 x 1.25

2шт.

Not Illustrated

1шт.

11

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

Not Illustrated

1шт.

12

87030421

GROMMET,3/8" ID x 1 1/4" Groove Dia, Str Cut

2шт.

Not Illustrated

1шт.

13

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

Not Illustrated

1шт.
