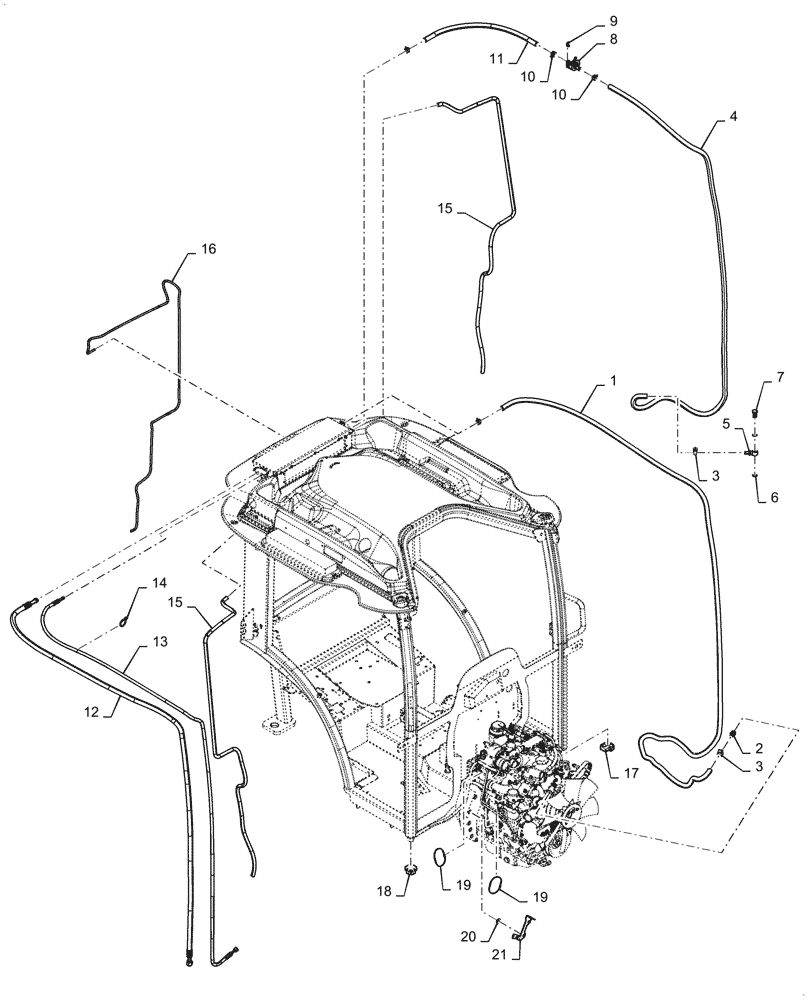

Запчасти Case IH FARMALL 45C (50.200.DE) - A/C & HEATER HOSES, CAB FRAME (50) - CAB CLIMATE CONTROL

1

47818020

HOSE

Heater Return

1шт.

2

47512006

FITTING

Heater Hose, 14mm ID x 17.5mm OD x 38mm L

1шт.

3

86505159

HOSE CLAMP

27mm

2шт.

4

47810373

HOSE

Heater, Supply

1шт.

5

47567265

FITTING

Banjo, 18.1mm ID

1шт.

6

47567336

WASHER

Banjo Sealing, 18.15mm ID x 23.8mm OD x 1mm Thk

2шт.

7

47567308

BOLT

Banjo, 18mm X 32mm L

1шт.

8

1331087C1

HEATER VALVE

1шт.

9

1954626C1

SPRING CLIP

Heater Valve

1шт.

10

1954736C1

HOSE CLAMP,#24

2шт.

11

1958774C1

HEATER HOSE

15.5mm ID x 24mm OD x 710mm L

1шт.

12

87627897

HOSE

A/C Suction

1шт.

13

47519941

A/C HOSE

Fan Shroud To Cab Roof

1шт.

14

47430584

CABLE TIE

Push Mount, 205mm L

1шт.

15

87362722

HOSE,12.95 mm ID x 760.00 mm

A/C Drain

2шт.

16

87343662

WINDSHIELD WASHER

Hose, 2800mm L

1шт.

17

87315315

GROMMET

Lower A Post, LH

1шт.

18

87627910

GROMMET

Lower A Post, RH

1шт.

19

263117

CABLE TIE,292.1mm L, Nylon, Black

9шт.

20

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

21

47823729

SUPPORT

A/C Hose

1шт.
