Запчасти Case IH FARMALL 45C (50.200.CA) - HEATER, EVAPORATOR (50) - CAB CLIMATE CONTROL

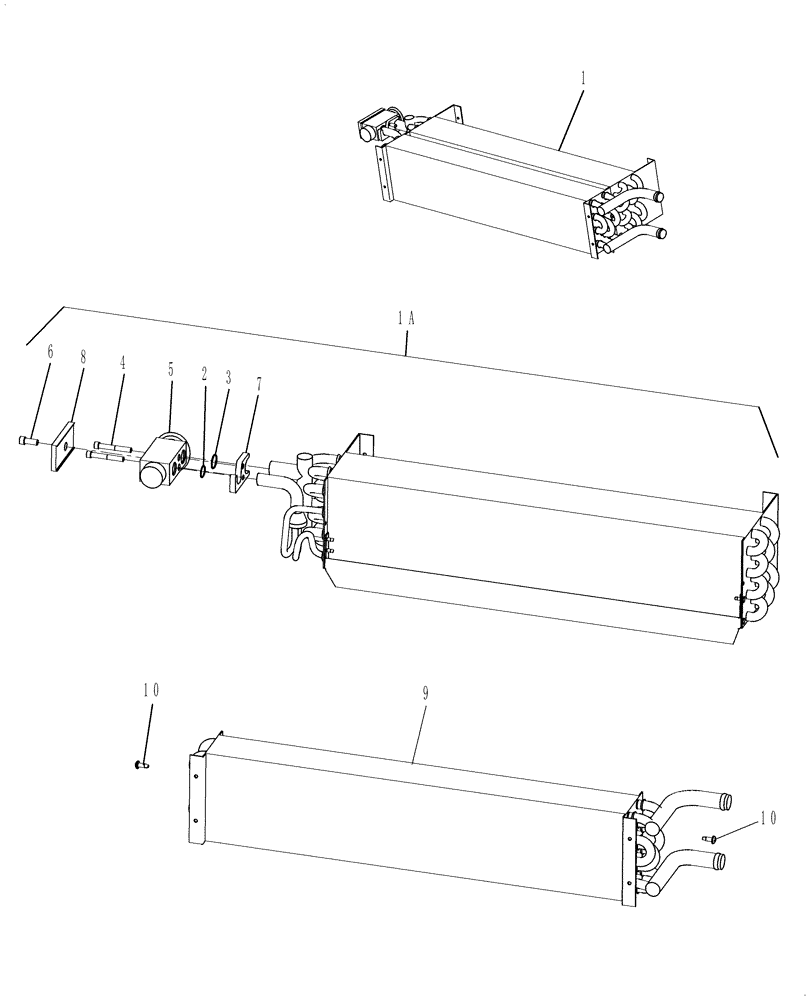

Схема запчастей Case IH FARMALL 45C - (50.200.CA) - HEATER, EVAPORATOR (50) - CAB CLIMATE CONTROL
3
9
7
1
10
5
2
1a
10
8
6
4

Артикул

Название

Примечание

Количество

1

87527589

EVAPORATOR

Heater Includes: Ref. 1A-10

1шт.

1a

87527162

COIL

Evaporator Includes: Ref. 2-8

1шт.

2

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

10.82 ID

1шт.

3

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

14.00 ID

1шт.

4

14358921

HEX SOC SCREW,M5 x 50mm, Cl 8.8

2шт.

5

82023542

VALVE, THERMAL EXPAN

1шт.

6

81874722

HEX SOC SCREW,M6 x 15mm

M6x15mm

1шт.

7

81874723

PLATE

Clamp

1шт.

8

NS

NOT SERVICED

Cap, Expansion Valve

1шт.

9

87527155

RADIATOR, HEATER

1шт.

10

86632692

SELF-TAP SCREW,Phillips Drive, Pan HD, #8 - 18 x 1/2"

2шт.

Выбрано товаров: 11
