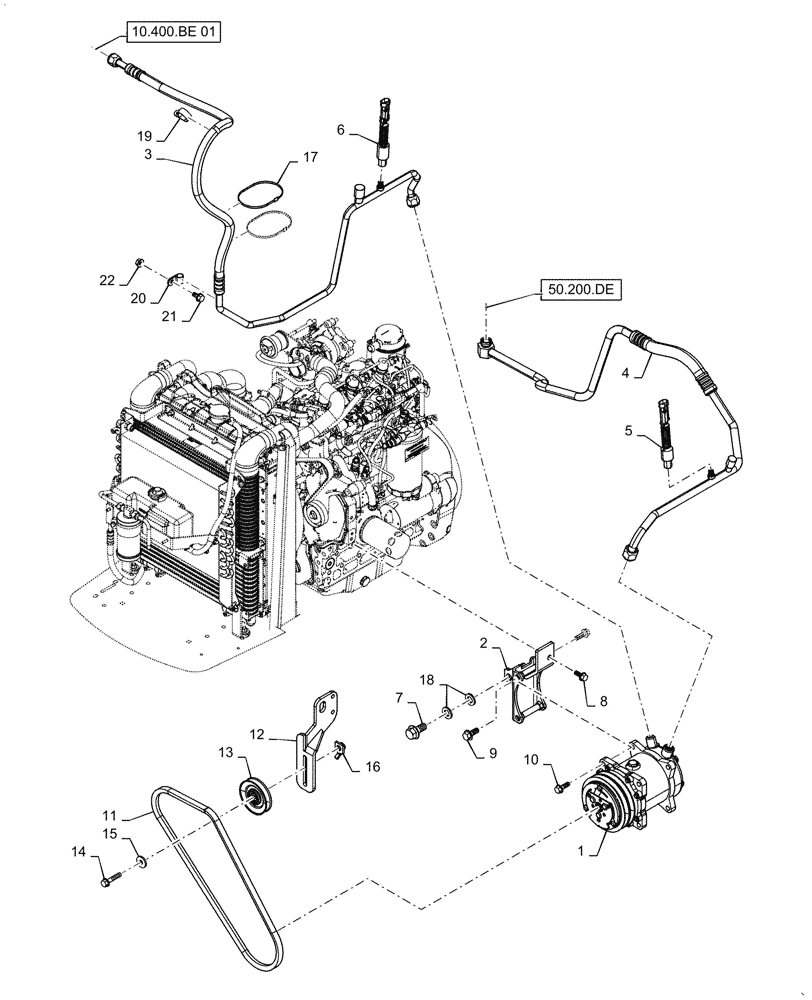

Запчасти Case IH FARMALL 45C (50.200.AA) - A/C COMPRESSOR, A/C HOSE (50) - CAB CLIMATE CONTROL

1

47468128

AIRCOND. COMPRESSOR

1шт.

47468128R

REMAN-A/C COMPRESSOR

1шт.

47468128C

CORE-A/C COMPRESSOR

1шт.

2

47918767

BRACKET

A/C Compressor Mount

1шт.

3

47899557

HOSE

A/C Discharge

1шт.

4

47791945

A/C HOSE

A/C Suction

1шт.

5

47950669

CONTROL

A/C Low Pressure Switch

1шт.

6

84419260

PRESSURE SWITCH

A/C High Pressure

1шт.

7

84188437

BOLT,Hex, M14 x 30mm, Cl 10.9

1шт.

8

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

9

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

10

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

11

47512789

V-BELT

A/C Compressor

1шт.

12

47776090

BRACKET

A/C Belt Idler

1шт.

13

87698090

PULLEY

A/C Belt Idler

1шт.

14

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

1шт.

15

86624143

WASHER,0.34" ID x 1" OD x 0.12" Thk

1шт.

16

87693640

BRACKET

1шт.

17

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

18

10520101

WASHER,14.4mm ID x 26mm OD x 3mm Thk

2шт.

19

87612756

CLAMP,25.4mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

20

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

21

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

22

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.
