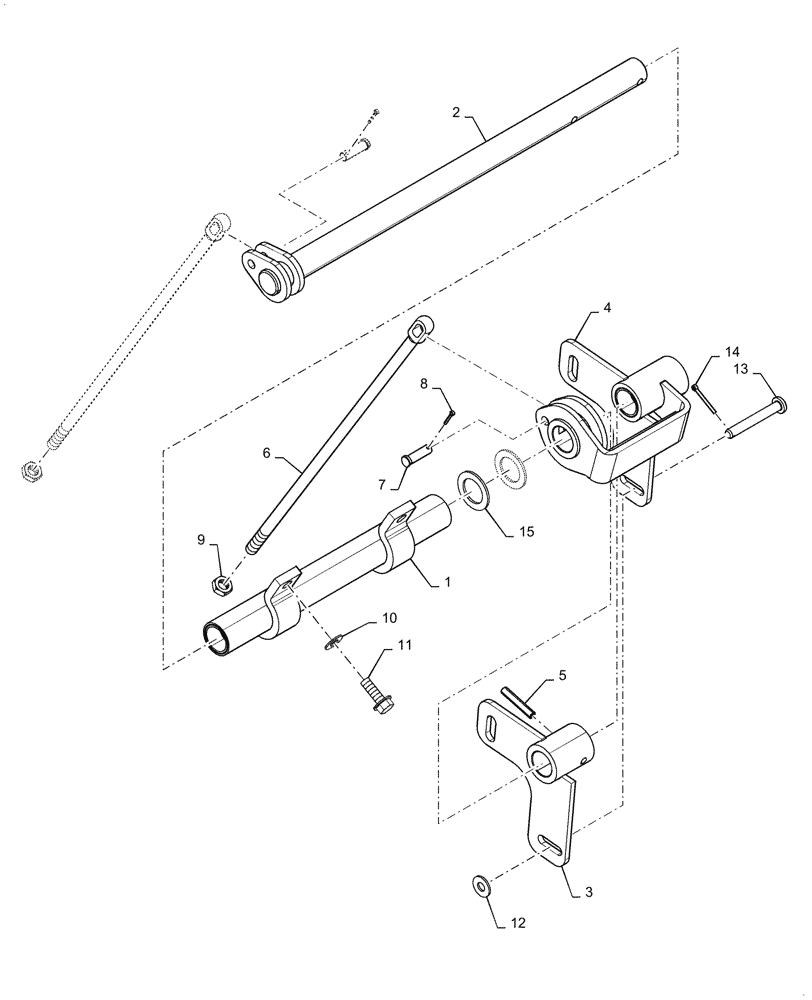

Запчасти Case IH FARMALL 45C (33.202.BN) - LINKAGE, BRAKE (33) - BRAKES & CONTROLS

1

87755882

PIVOT ASSY.

Brake Linkage

1шт.

2

87757816

SHAFT

Brake Linkage

1шт.

3

84419979

BRACKET

Hub, Pedal, RH

1шт.

4

84419978

HUB

Pedal, LH

1шт.

5

300873

ROLL PIN

8mm OD x 45mm L

1шт.

6

84386397

ROD

Brake Linkage

2шт.

7

87723788

HEADED PIN

19.53mm OD x 31.75mm L

2шт.

8

280250

COTTER PIN,3/32" OD x 3/4" L

2шт.

9

10791911

NUT,M12 x 1.5mm, CL04 ZND

2шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

11

9804262

BOLT,M10 x 39.2mm, Cl 8.8

4шт.

12

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

2шт.

13

87668381

PIN

1шт.

14

130005

COTTER PIN,M3.2 x 32

1шт.

15

81802631

THRUST WASHER,29.02mm ID x 44.4mm OD x 2.39mm Thk

2шт.
