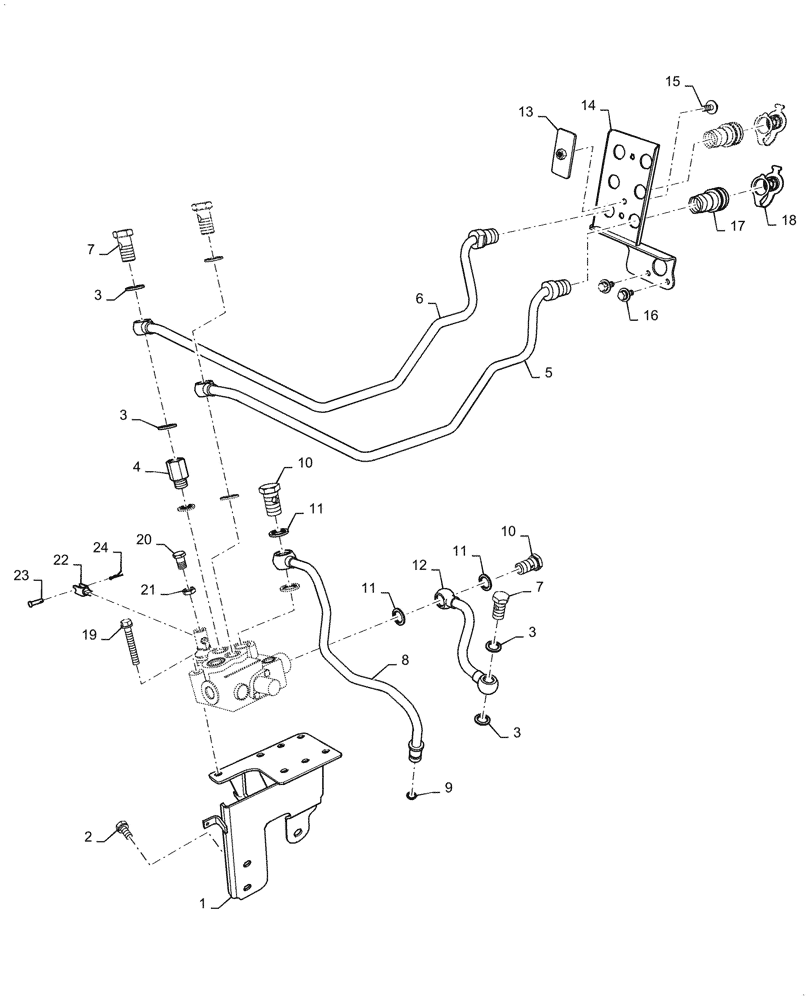

Запчасти Case IH FARMALL 45C (35.204.020) - REMOTE CONTROL VALVE, CAB (35) - HYDRAULIC SYSTEMS

1

MT40255343

BRACKET

Remote Control Valve

1шт.

2

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

1шт.

3

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

7шт.

4

MT40010251

HYD CONNECTOR,22mm ID x 3/8” OD x 11X40L

1шт.

5

MT40254886

PIPE

1st (L)

1шт.

6

MT40254887

PIPE

1st (R)

1шт.

7

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

3шт.

8

MT40350781

PIPE

Drain

1шт.

9

MT40029199

O-RING,2.40mm Thk x 11.80mm ID

1шт.

10

MT40010250

BOLT,Union 1/2" x 36mm L

2шт.

11

MT40012096

SEAL,1.5mm Thk x 21.2mm ID

4шт.

12

MT40350780

PRESSURE PIPE

1шт.

13

MT40011888

BRACKET

Aux Pipe

1шт.

14

MT40255614

BRACKET

Remote Control Pipe

1шт.

15

MT40029008

BOLT,Hex, M8 x 1.25 x 25mm

1шт.

16

MT40029006

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

17

MT40230238

COUPLING, QUICK, FEM,1/2"

Quick

2шт.

18

MT40290327

CAP

Coupler

2шт.

19

MT40028930

BOLT,Hex, M8 x 1.25 x 60mm

2шт.

20

MT40029362

BOLT,Hex, M10 x 1.5 x 25mm

1шт.

21

MT40028769

NUT,Hex, M10 x 1.5

1шт.

22

MT40275674

CLEVIS

R/C Valve

1шт.

23

MT40032262

PIN,1mm OD x 20mm L

1шт.

24

MT40029130

PIN,M6

1шт.
