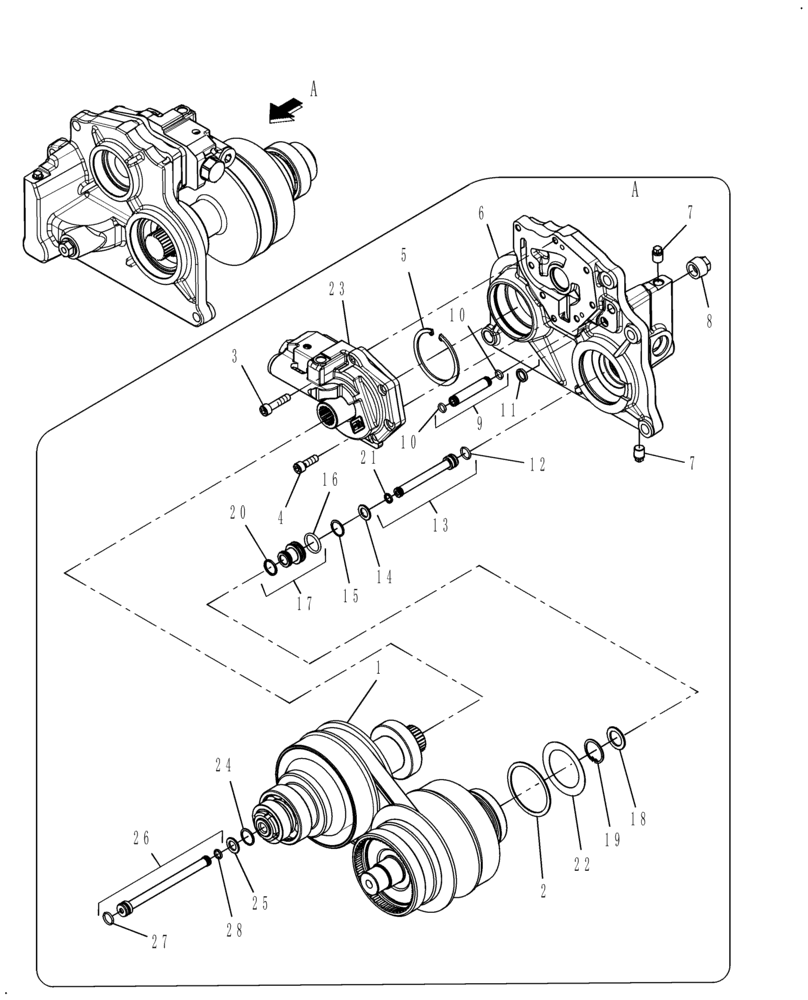

Запчасти Case IH FARMALL 45B CVT (21.600.AC) - VARIATOR (21) - TRANSMISSION

1

GRT3347533

VARIATOR

1шт.

2

GRT3474413

THRUST WASHER

THRUST WASHER

1шт.

3

GRT72699

SCREW

SCREW, M8X1.25x35 CL 12.9

6шт.

4

GRT71386

SCREW

SCREW, M8X25 CL 8.8

1шт.

5

GRT3VT02903

RING

RING, Retaining 2.40 TH

1шт.

6

GRT3VT01523

PLATE

Intermediate Plate

1шт.

7

GRT72502

PLUG

TAPERED THREADED PLUG M12X1.5

2шт.

8

GRT71320

PLUG

TAPER THREADED PLUG {

1шт.

71320

1шт.

9

GRT3VT01513

PIPE

SECONDARY PULLEY INLET PIPE

1шт.

10

GRT70461

O-RING

Seal, 1.78x9.25

2шт.

11

GRT70501

O-RING

Seal, 2.62x11.91

1шт.

12

GRT70793

O-RING

Seal, 1.78x12.42

1шт.

13

GRT3VT01493

PIPE

TORQUE SENSOR PIPE Includes: Ref. 11 & 21

1шт.

14

GRT3347273

SHIM

PIPE SHIM

1шт.

15

GRT71215

RING

RETAINING RING

1шт.

16

GRT72314

O-RING,0.103" Thk x 0.75" ID, -116, Cl 7, 75 Duro

Seal, 2.62x21.89

1шт.

17

GRT3VT01503

PIPE

SECONDARY PULLEY INLET PIPE Includes: Ref. 16 & 20

1шт.

18

GRT3458823

SHIM

SECONDARY PULLEY PIPE SHIM

1шт.

19

GRT72590

RING

RETAINING RING

1шт.

20

GRT3347913

SEAL,Split, 17.05mm ID x 20.15mm OD x 1.8mm Thk

Piston Ring Hydraulic

1шт.

21

GRT3347903

SEAL

Piston Ring Hydraulic

1шт.

22

GRT3474293

SPRING-DISC

DISC SPRING

1шт.

23

GRT3459223

TRANSMISSION

SAMHYDRAULIK (Coupler Part of Pump and has a keyway on the outside diameter.

1шт.

Key is Steel and Measures 9.85 x 2.95 x 4.95 mm and is Not Serviced.

1шт.

Not Included in Kit

1шт.

24

GRT71215

RING

RING, Retaining

1шт.

25

GRT3347273

SHIM

SHIM, Pipe

1шт.

26

GRT3VT01423

PIPE

PIPE, Primary Pulley Includes: Ref. 27 & 28

1шт.

27

GRT70793

O-RING

Seal, 1.78x12.42

1шт.

28

GRT3347903

SEAL

PISTON RING HYDRAULIC

1шт.

29

GRT3VT03483

ASSEMBLY

Includes: Ref. 1-22 & 24-28

1шт.
