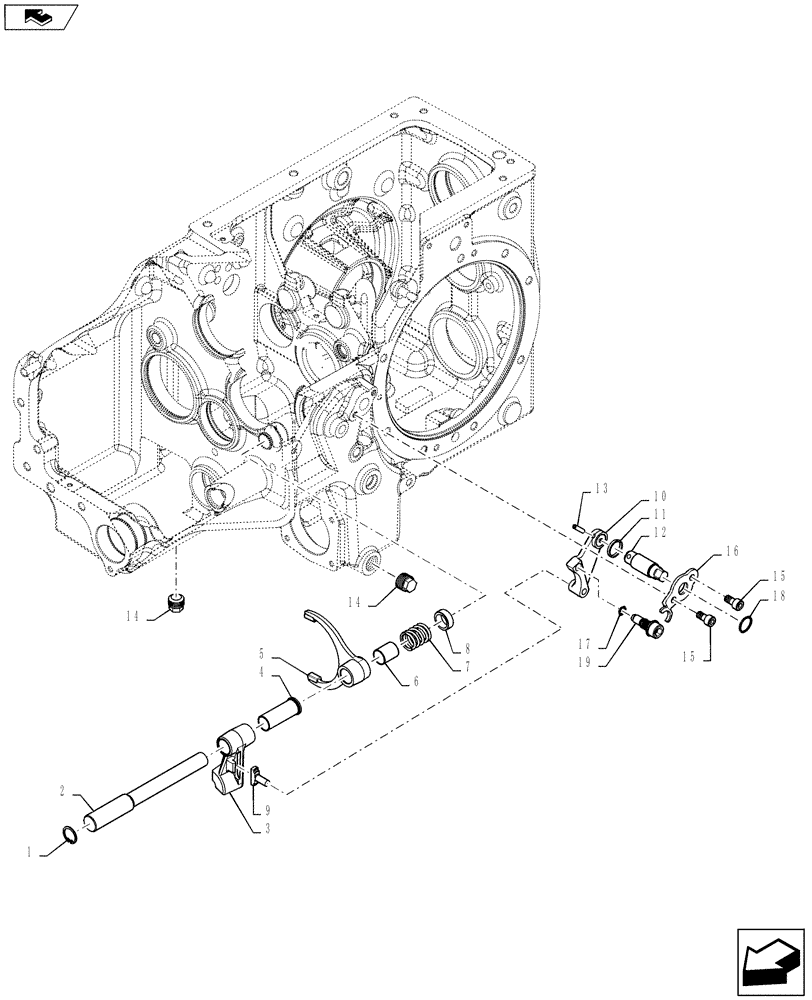

Запчасти Case IH FARMALL 45B CVT (21.507.AA) - TRANSMISSION RELEASE CONTROL (21) - TRANSMISSION

1

GRT72519

RING

Retaining

1шт.

2

GRT3459083

ROD

Sliding Fork Rod

1шт.

3

GRT3474023

FORK

Transmission Disengagement

1шт.

4

GRT3484273

BUSHING

Sliding

1шт.

5

GRT3474053

SHIFTER FORK

Pinion Axis Disengagement

1шт.

6

GRT3458593

BUSHING

18 x 20 x 25

1шт.

7

GRT3459073

TENSION SPRING

Transmission Unlocking

1шт.

8

GRT3484263

SPACER

FWD Engagement Internal

1шт.

9

GRT3346883

PIN

PTO Lever Sliding

1шт.

10

GRT3474033

CAM

Transmission Disengagement Fork

1шт.

11

GRT72498

O-RING

Seal, 2.62 x 18.72

1шт.

12

GRT3474063

ROD

Transmission Disengagement Cam ROD

1шт.

13

GRT71694

PIN

Spring Slit

1шт.

14

GRT70226

PLUG

Thread Magnetic Ext. Hex M22 x 1.5

2шт.

15

GRT70160

BOLT

HH M8 x 16

2шт.

16

GRT3474013

COVER

Transmission Engagement System

1шт.

17

GRT70461

O-RING

Seal 1.78 x 9.25

1шт.

18

GRT70587

RING

Detent M14 x 1.5

1шт.

19

GRT3474043

SCREW

Retaining

1шт.
