Запчасти Case IH FARMALL 45B CVT (21.506.AA[01]) - COMPLETE TRANSMISSION EXTERNAL PIPING (21) - TRANSMISSION

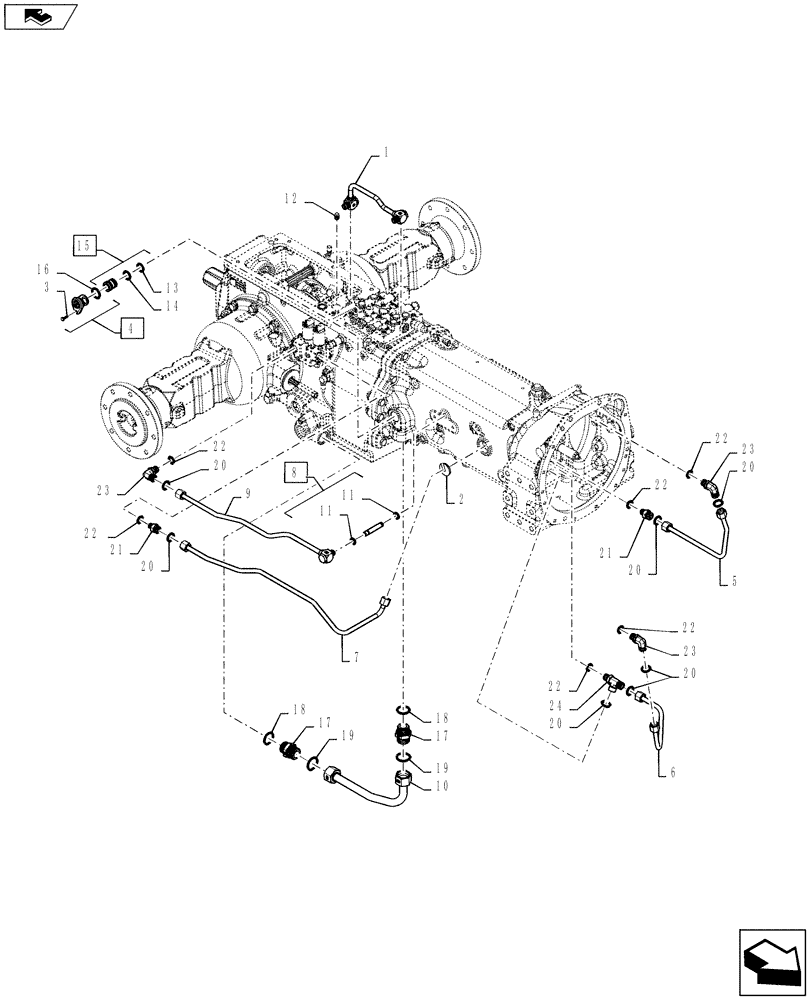

Схема запчастей Case IH FARMALL 45B CVT - (21.506.AA[01]) - COMPLETE TRANSMISSION EXTERNAL PIPING (21) - TRANSMISSION
15
7
20
22
24
20
3
6
19
11
8
22
17
12
17
20
9
13
22
10
home
23
18
23
20
19
21
2
22
16
21
4
1
20
20
14
18
11
23
5
22
22

Артикул

Название

Примечание

Количество

1

GRT3474323

PIPE

Primary Pulley Inlet

1шт.

2

GRT3521803

PLUG

1шт.

3

GRT70223

BOLT

M6x16

1шт.

4

GRT3VT01293

COVER

Pump Suction

1шт.

5

GRT3458553

PIPE

Relief Valve Drain Pipe

1шт.

6

GRT3458543

PIPE

Shuttle Clutch Hydraulic Block Inlet

1шт.

7

GRT3458513

PIPE

PTO Hydraulic Block Inlet

1шт.

8

NS

NOT SERVICED

Shuttle Clutch Lube Pipe

1шт.

9

GRT3458533

PIPE

PTO Hydraulic Block Washing

1шт.

10

GRT3478503

TUBE

Pump Suction External

1шт.

11

GRT70461

O-RING

1.78x9.25

2шт.

12

NS

NOT SERVICED

Tapered Threaded Plug M10 x 1.25

1шт.

13

GRT72599

O-RING

Seal, 1.78 x 23.52

1шт.

14

GRT71851

O-RING

Seal, 1.78 x 25.12

1шт.

15

GRT3VT01283

SUCTION PIPE

1шт.

16

GRT72143

O-RING

Seal, 1.78 x 28.30

1шт.

17

GRT3VT01793

HYD CONNECTOR

Connector

2шт.

18

GRT3VT01723

O-RING,0.103" Thk x 1.174" ID, -123, Cl 8, 90 Duro

Seal

2шт.

19

87473574

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

20

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

7шт.

21

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

22

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

6шт.

23

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

3шт.

24

86579702

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

Выбрано товаров: 24
