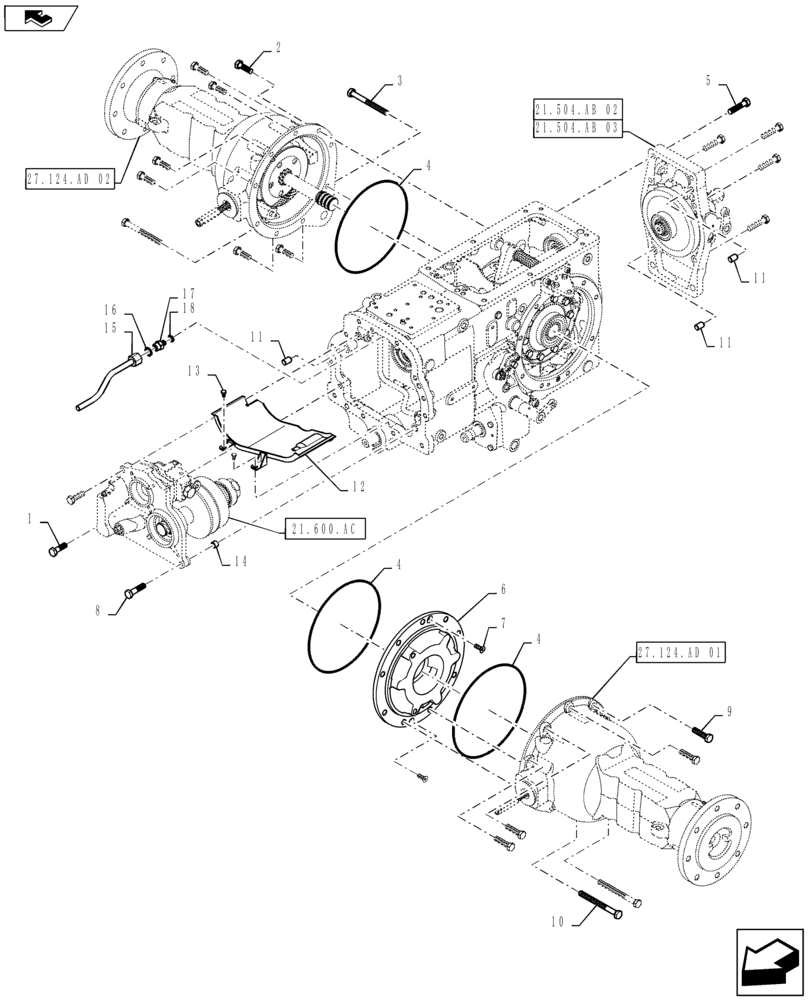

Запчасти Case IH FARMALL 45B CVT (21.504.AK[03]) - REAR HOUSING ASSEMBLY (21) - TRANSMISSION

1

GRT70277

BOLT

Hex M12 x 40 CL 8.8

1шт.

2

GRT72584

BOLT

M12 x 40

7шт.

3

84145867

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8

M12 x 1.25 x 120

2шт.

4

87481393

O-RING

Seal, 3.53 x 247.24

3шт.

5

GRT72236

SCREW

Hex M12 x 55 CL 8.8

6шт.

6

87573414

BEARING CARRIER

LH Side Axle Cover

1шт.

7

GRT70782

SCREW

M8 x 25

2шт.

8

GRT70798

BOLT

M12 x 1.75 x 50 CL 8.8

1шт.

9

GRT72583

BOLT

M12 x 1.25 x 50

7шт.

10

GRT72586

BOLT

M12 x 1.25 x 130

2шт.

11

NS

NOT SERVICED

Dowel

3шт.

12

NS

NOT SERVICED

Variator Pulley Shield

1шт.

13

GRT70031

SCREW

Hex M6 x 12 CL 8.8

2шт.

14

NS

NOT SERVICED

Dowel, Bushing 12.5 x 15 x 18

1шт.

15

GRT3458893

PIPE

Torque Sensor Inlet

1шт.

16

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

86579674

HYD CONNECTOR,13/16"-16 ORFS x M14 x 1.5 ORB

Male

1шт.

18

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
