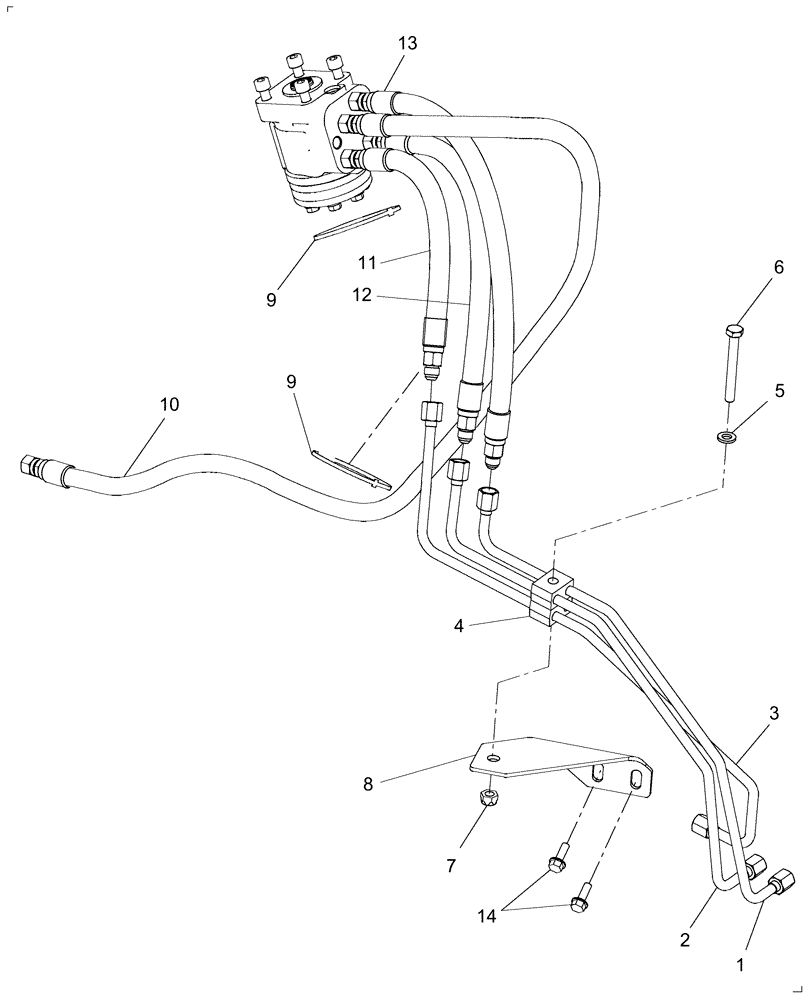

Запчасти Case IH FARMALL 45B CVT (41.216.AV) - POWER STEERING HOSES (41) - STEERING

1

84194015

HYD TUBE,9.53 mm OD

Steering Cyl Left

1шт.

2

84194016

HYD TUBE,9.53 mm OD

Steering Cyl Right

1шт.

3

84195151

HYD TUBE,9.53 mm OD

Steering Pump Pressure

1шт.

4

86400111

CLAMP

Halves 3/8

2шт.

5

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

1шт.

6

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

1шт.

7

353308

NUT,M6 x 1.0, Cl 8

1шт.

8

84139155

BRACKET

Power Steering Tubes

1шт.

9

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

10

84139156

HOSE

Steering Return Cab

1шт.

11

87535324

HOSE

Power Steering Pump

1шт.

12

87535323

HOSE

Power Steering Cyl RH

1шт.

13

87530925

HOSE

Power Steering Cyl LH

1шт.

14

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

2шт.
